Condor XC-MINI Plus Highlights:

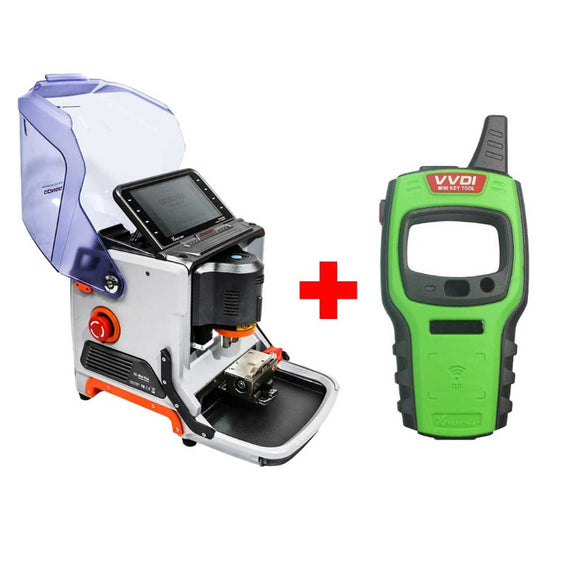

Xhorse Condor XC-Mini Plus (Condor XC-MINI II) Key Cutting Machine
1.Technical service online and 3 years warranty
free technical support, online service to provide remote control support
2.Update online for free lifetime by Xhorse update kit software
3.3.8 Condor MINI Plus Update
+ Add parts of Chinese car models
* Fix mahinda xylo key algin issue
3.Advanced Design Integrated Casting
With better PCB and Motors, High Quality to Work More Stable and Accurate
4.Support More Than 60 Global Brand,2000 car Models and 20000 all key lost database.
All key Key Lost Database (Use the Same Xhorse Dolphin Database)
Free download the XC MINI CONDOR PLUS user manual
6.Support work with Xhorse app
7.Bind with VVDI MB Tool , your VVDI MB Tool can get 1 free token everyday.
8. Support Cut Sided, Track, Dimple and Tibbe Keys, Household Keys
Right now Support cut plastic key and aluminum key.
9. Package Contain 1pcs VVDI MINI Key Tool
VVDI MINI Key Tool Free with ID48 96bit function, and one token free everyday 1 year.
XC-MINI Plus Optional Accessories：
1) Optional Clamps:
1. Clamp M3(Optional) used for Ford FO21 & CItroen SX9 keys.
2. Clamp M4(Optional) used for Household keys..
If you need M3 and M4 clamp, you need to order alone.
2) Optional cutters and Probes:
1) 1.0mm Tracer Probe
2) 1.5mm Milling Cutter
3) 2.0mm Milling Cutter
4) 2.5mm Milling Cutter
Xhorse Condor XC-Mini Plus New Features: (Update of XC-MINI)
1) Space between cover and key is bigger then mini condor....
for XC-MINI many keys with casings like VW flip key will not allow you to close the cover
2) The screen is designed with adjustable angle
Many time the machine is on a higher / desk and it's then difficult to operate and see what's on the screen
3) Mounting support-to make it easier when mounting the machine on a Mobile unit as you don't
want it flying around in the back of your VAN....
4) Multiple sealing designs to avoid debris
MINI Plus Features:
1. Built—in Database
Built-in actuate database,detailed parameters, schematic sample depth key tool avaliable for users, according to the blank key data,
edit key shape, space flat, depth for making a new key data. It is convient to synchronize the new key data to machine.
2. Patent Certificate:
Condor XC-Mini Plus has appearance Patent Certificate, computer software copyright registration Certificate, Untility Model Patent Certificate etc.
3. Essential Tool for All Key Lost
Condor Mini Plus contains three powerful functions for all keys lost key databse, cut by bitting & find bitting,
esstional tool for locksmith all key lost job eaiser to be completed.
4. Manufacture Process
Aluminum main body, partial made by 304 stainless steel matertals. net weight 18KG is lightweight machine with stable structure.
Machine used 3-Axis precison Ball screw transmisson with higher accuracy & stability than T screw transmisson
5. Power/Motor Specification
Adopting internal general full range AC (Alternating Current) input (90V-26V); working efficiency up to 93%;
can sustain surge voltage input (300V) for up to 5 seconds, no-load power loss lower than 5 watts;
CONDOR built-in 200V brushless motors; high rotation speed; low noise; minimal vibration; strong reliablity and great stability.
6. Clamp Equipped
Condor XC-Mini Plus automatic key cutting machine standerdy includes
two Clamps M1 and M2 support sided,
track,dimple and tibble keys, some dimple/tibble keys need
and M3,M4 clamps For Ford FO21 & CItroen SX9 keys and Housekeys.
CONDOR XC-MINI Plus supports online update. Users can update the machina by connecting the machine to internet-connected PC,
server is available 24/7 and free of region restriction for online update.
Support Online file update. Update log will automatically display in software.
Xhorse technical support team provides professional and efficient online technical support for free.
Three Years warranty and lifelong after-sale customer service are included in order to guarantee the carefree
machine operation for customers. Customers feedback and suggestions are always appreciated.
How to Choose Condor MINI Plus and Dolphin XP005?
Xhorse Dolphin key machine is an entry-level product of the CONDOR CNC machine family.
The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen,
you need to connect a mobile phone or tablet, and install a dedicated APN.
Condor XC-Dolphin vs Condor XC-Mini Plus
|Key cutting machinev||Condor DOLPHIN XP-005||Condor XC-MINI PLUS|
|Screen||Small screen showing battery and Bluetooth status||LED Display 1024×600 Adjustable Touch-Screen|
|Spindle||Mechanical shaft +60W DC motor (with a foreign model)”
“Electric spindle brushless 300W, built-in angular contact bearing
|Electric spindle brushless 300, built-in angular contact bearing|
|Transmission mechanism||T-shaped screw + anti-backlash nut||Ball screw|
|Shell||Base aluminum alloy die-casting, the upper body is made of plastic
shell and the body is made of integrated aluminum alloy die-casting
|Plastic outer casing body is formed by body alloying die casting|
|Operating system||Mobile phone APP||Stand-alone/Mobile phone APP|
|Battery||Optimized lithium battery of well-known brand, stable and reliable
support cutting under no power conditions
|(optional) Power supply adapter with Battery|
|All Keys Lost||Yes, must enable network connection||Yes, offline operation|
|Fixture||Standard fixture||Two sets of standard fixtures|
|Manipulation||No touch screen, no built-in database||Quick start, with touch screen, built-in database|
|Offline operation||not support||stand by|
|Dedicated app||Support dedicated mobile phone APP||Support dedicated mobile APP|
|Protecting Mask||Simple protective cover||Comprehensive protection|
|VVDI MB binding||Yes. After bind, VVDI MB is one token free everyday.||Yes. After bind, VVDI MB is one token free everyday.|
|Cutting speed||1X SPEED||2X SPEED|
|Warranty||1 year||3 years|
|Update||Update online via Xhorse Update Kit||Update online via Xhorse Update Kit|
CONDOR XC-MINI Plus Specification:
Working Temperature: 0-50℃
Working Voltage: 90-264V/AC
Input Frequency: 47-63Hz
Package Dimension: 515 x480x380mm
Machine Dimension: 250 x413x300mm
Net Weight: 19kg
Gross Weight: 24kg
USB port: USB2.0
LED Display: 1024x600
Motor Rotation Speed: 9000rpm
Xhorse CONDOR XC-MINI Plus Package List:
1pc x CONDOR XC-MINI Plus Machine Body
1pc x 1.5mm Cutter
1pc x 2.5mm Cutter
2pc x 1.0mm Probe
1pc x Power cord (1.5m) (Chinese Standard)
1pc x USB Cable(1.5m)
1pc x Brush
1pc x M1 Clamp for Single/Double sided keys
1pc x M2 Clamp for Channel-track keys
1pc x Quick Start Guide
1pc x User Manual
VVDI Mini Key Tool Package includes:
1pc x VVDI Mini Key Tool Device
1pc x Remote Programming Cable
1pc x USB cable
1pc x User Guide
