2024 OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Support Car/ HD/ E-Car/ Motorcycles/ Jet Ski
OBDSTAR X300 Classic G3 Key Programmer for Car/ HD/ E-Car/ Motorcycles/ Jet Ski with 2 Years Free Update

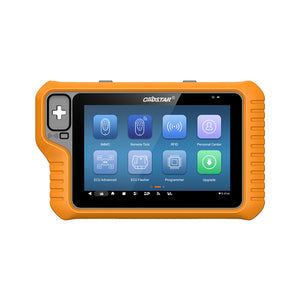

OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, Jet Ski, etc. A good helper for an automotive locksmith master.
Highlights:
1. Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
2. Supported vehicles: Car, HD, E-Car, MOTO, Jet Ski
3 Two Years Free Update Online, Update Version of X300 DP Plus
4. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
5. With MP001 (replace P003/P003+ Adapter), P004 Adapter and Renault Adapter in Default Package
6. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
7. Paid Software Service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn your G3 to a powerful all in one tool. With ECU Cloning license, G3 will work as same as DC706.
8. Get Both Key SIM Emulator and Motorcycle Adapter Set (M034, M037, M040, M041, M042, M043, M053, M054) for Free.
9. Please Check
OBDSTAR X300 Classic G3 User Manual
OBDSTAR X300 Classic G3 Vehicle List
Notice: Language: English Only
Other Optional Accessories You May Need:
OBDSTAR Ford All Key Lost Cable work together with OBDSTAR P002 Adapter for FORD /LINCOLN / MUSTANG etc
OBDSTAR Toyota-30 Cable Proximity Key Programming / All Key Lost Support 4A and 8A-BA types No Need to Pierce the Harness
Advanced Functions
1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.
OBDSTAR X300 Classic G3 Vs. X300 DP Plus:
X300 DP Plus C | X300 Classic G3 | ||
Hardware | Operation system | Android 5.1.1 | Android 11 |
OTA | x | √ | |
Screen recording | x | √ | |
Wireless screen casting | x | √ | |
CPU | qual core ARM cortex A9 1.4GHz | Quad-core 64-bit Cortex-A55 2.0GHz | |
Battery | 3700mAh | 9000mAh | |
Storage capacity | 1+32GB | 4+64GB | |
LCD | 8.0 inch | 8.0 inch fully laminated sunlight readable screen | |
Camera | Rear camera 500W pixels | Rear camera 800W pixels, auto-focus | |
Bluetooth | Bluetooth 4.2 | Bluetooth 5.0(Compatible with BT 4.2) | |
External interfaces | x | RJ-45√ | |
x | HDMI√ | ||
TYPE-A | TYPE-A,TYPE-C | ||
WiFi | 2.4G | Dual-band 2.4G/5GHZ | |
VCI | STM32F105 | STM32H723 | |
CANFD Adapter Required | CANFD built in√ | ||
x | DOIP built in√ | ||
x | Low Speed(Fault Tolerant) CAN built in√ | ||
x | RS232、RS485 built in√ | ||
All other common protocol types | All other common protocol types | ||
RFID | P001 Required | Built in√ | |
Remote Test | RT100 Required | Built in√ | |
Renault Converter | Renault Converter Required | Built in√ | |
Weight | About 1kg | 1.5kg (main unit) | |
Dimension | 254mm*174mm*35mm | 270.5mm*165mm*39mm | |
Functions | Diagnosis | √ | x |
OBDⅡ | √ | √ | |
Car IMMO | √ | √ | |
MOTO IMMO | √ | √ | |
HD IMMO | √ | √ | |
Marine IMMO | x | √ | |
E-Car IMMO | x | √ | |
RFID | x | √ | |
Make key | x | √ | |
Unlock Smart key | x | √ | |
Renew key | √ | √ | |
Read/Write EEPROM MCU | √ | √ | |
ECU advanced(Includes ECU unlock) | x | √ | |
Oil/Service reset | √ | √ | |
Other service function | √ | x | |
Remote test | x | √ | |
ECU flasher IMMO(IMMO OFF、ISN、IMMODATA) | x | √ | |
ECU flasher(Clone) | √ Limited supported models, different with DC706 and G3 |
Paid License | |
Car/Motorcycle cluster recalibration | √ | Paid License | |
Airbag reset | √ | Paid License | |
Test Platform | x | Paid License |
OBDSTAR X300 Classic G3 FAQ:
Q1: Can the X300 Classic G3 be equipped with Airbag Reset, Cluster Recalibration, ECU Flasher and other functions?
A1: Yes, please contact us or our our dealers for details.
Q2: I would like to have the list of supported models & features of this tool, where can I get it?
A2: You can download the coverage of the tool from the "Function Manual" on the product page of our official website, and we usually synchronize the update at the end of each month.
Q3: Is X300 Classic G3 compatible with all the functions of KEY MASTER DP PLUS?
A3: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of KEY MASTER DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.
Q4: Can I use the accessories of an old product I have previously purchased?
A4: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:
1. P002 adapter, P003 adapter, Key Sim adapter;
2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;
3. NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;
4. FCA 12+8 CABLE;
5. TOYOTA 8A cable, FORD all key lost cable.
Q5: What is ECU Unlock function of X300 Classic G3?
A5: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.
Package Includes:
1pc x OBDSTAR G3 Multiplexer
1pc x M001 Main Cable
1pc x Charger
1pc x MP001 All-in-One Programmer
1pc x W004 Read/Write Soldering Wire
1pc x W005 Read/Write Soldering Wire
1pc x W006 Clock Frequency Wire
1pc x C4-01 Multi-function Data Read/Write Board
1pc x C4-02 Eight-pin Chip(IC) Soldering Board
1pc x BENCH-A V3 for ECM and TCM Cloning Functions
1pc x P004 Adapter
1pc x BENCH-B V2 ECU Cloning BENCH Harness
