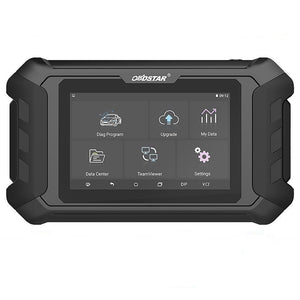

OBDSTAR ODO Master is a new Android based 5'' tablet, specialized for cluster calibration. It inherits the latest cluster calibration technology from OBDSTAR with various advantages of easy-to-use, wide model coverage, fast operation and durable features which can meet the actual needs of different users such as automobile repair plants and fast repair shops.
OBDSTAR ODO Master Highlights:
1. The update cycle is short and fast (updated every 2-3 days)
2. Free Update Online for One Year, after one year it will cost $300 per year. Dealer Code: 860755B1
3. Strong competitiveness and industry advantage
4. Some models can support 18/19 years of car (such as GM/Chrysler)
5. Add a new help function as shown below: (Applicable to some models, R & D information is being update)
OBDSTAR ODO Master Functions List:
1. Via OBDII
2. Data Backup
3. Data Recovery
4. Read Odometer
5. Write Odometer
6. Odometer Reset
7. Oil Service Reset
8. Read & Clear DTC
9. One-Click Upgrade
10. Instruction Documents
11. Wide Vehicle Coverage
OBDSTAR ODO Master Support Car Software list:
Europe:
ALFA ROMEO,AUDI,BENTLEY,BENZ,BMW/Mini,CITROEN,PEUGEOT,FERRARI,FLAT,JAGUAR,LANCIA,LAND ROVER,MASERATI,OPEL,PORSCHE,RENAULT,VOLVO,IVECO,SKODA,SEAT,VW
Japan:
ISUZU,MAZDA,MITSUBISHI,INFINITE,NISSAN,SUBARU,TOYOTA
Korea:
HYUNDAI,KIA,SANGYONG
America:
FORD/LINCOLN,CHRYSLER,GM
China:
GEELY,BESTURN,CHANGAN,ROEWE MG,ROEWE
Car Models Coveraged | ODO Master | X300M | |
Ford | Fiesta | 2017- | 2013- |
Focus | 2019 | 2013- | |
Transit | √ | × | |
KA | 2018- | 2005- | |
GM | Colorado | 2018- | 2010- |
Cruze | 2017- | 2015- | |
Escalade | 2018- | / | |
XT6 | 2019 | ||
Yukon | 2017- | 2014- | |
Chrysler | Cherokee | 2018- | 2015 |
RAM | 2018- | 2011- | |
Durango | 2018- | 2014- | |
Land Rover | Discovery 4 | 2015- | / |
Range Rover Sport | 2017- | 2014 | |
VW | MQB 2012-2014.06 | √ | × |
MQB 2014.06- | √ | √ | |
Renault | Captur | 2017- | / |
Trafic IV | 2017- | / | |
KIA CEED | 24C16 | √ | √ |
D70F3423 | √ | √ | |
D70F3XXX | √ | × | |
D70F3421 | √ | × | |
D70F35XX | √ | × | |
NEC | √ | × | |
NEC+24C16 | √ | × | |
KIA Optima | 24C16 | √ | √ |
D70F3536 | √ | √ | |
D70F3421 | √ | × | |
D70F352X | √ | × | |
D70F35XX | √ | × | |
NEC | √ | × | |
NEC+24C16 | √ | × | |
Nissan | Altima 2013 | √ | √ |
KICKS 2017- | √ | × | |
Mitsubishi | Outlander | √ | × |
Triton 2015- | √ | × |
OBDSTAR ODO Master Hardware Comparison with OBDSTAR X300M:
OBDSTAR ODO Master Specifications:
Operation System | Android 5.1.1 |
CPU | RK3128 Quad-Core ARM Cortex A7 1.2GHz |
Battery | 2600mA, rechargeable polymer lithium battery |
Extension Memory Card | 32G Micro SD (TF) card supported |
Memory Capacity | 16GB |
Storage Capacity | 32GB |
LCD | 5.0 inch |
LCD Resolution | 8000*600 |
Touch Screen | Capacitive touch screen |
Camera | 5 mega rear view camera |
Wi-Fi | supported |
Working Temperature | -20℃ ~ 55℃(14℉ ~ 131℉) |
Storage Temperature | -20℃ ~ 70℃(-4℉ ~ 158℉) |
Dimension | 140mm*89*mm*18mm |
Weight | About 700g |
OBDSTAR ODO Master Package includes:
1pc x Configuration List
