| Model |

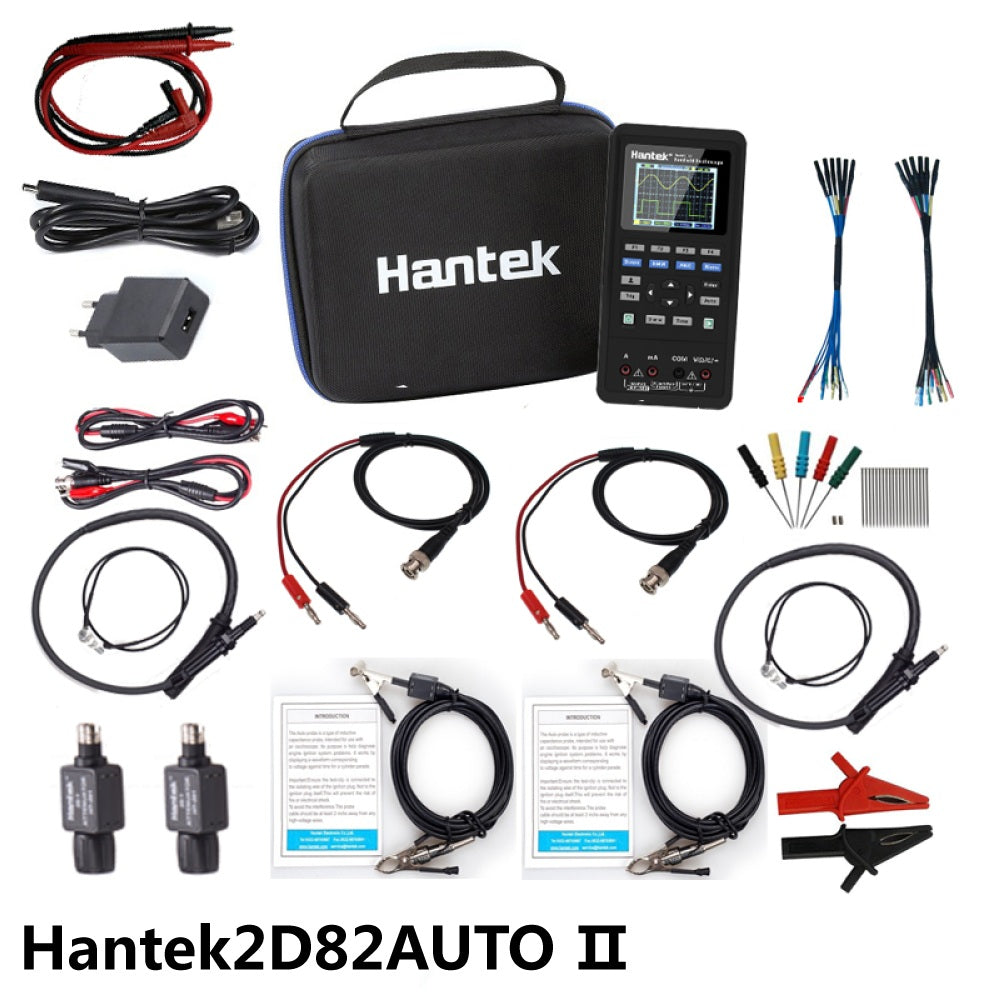

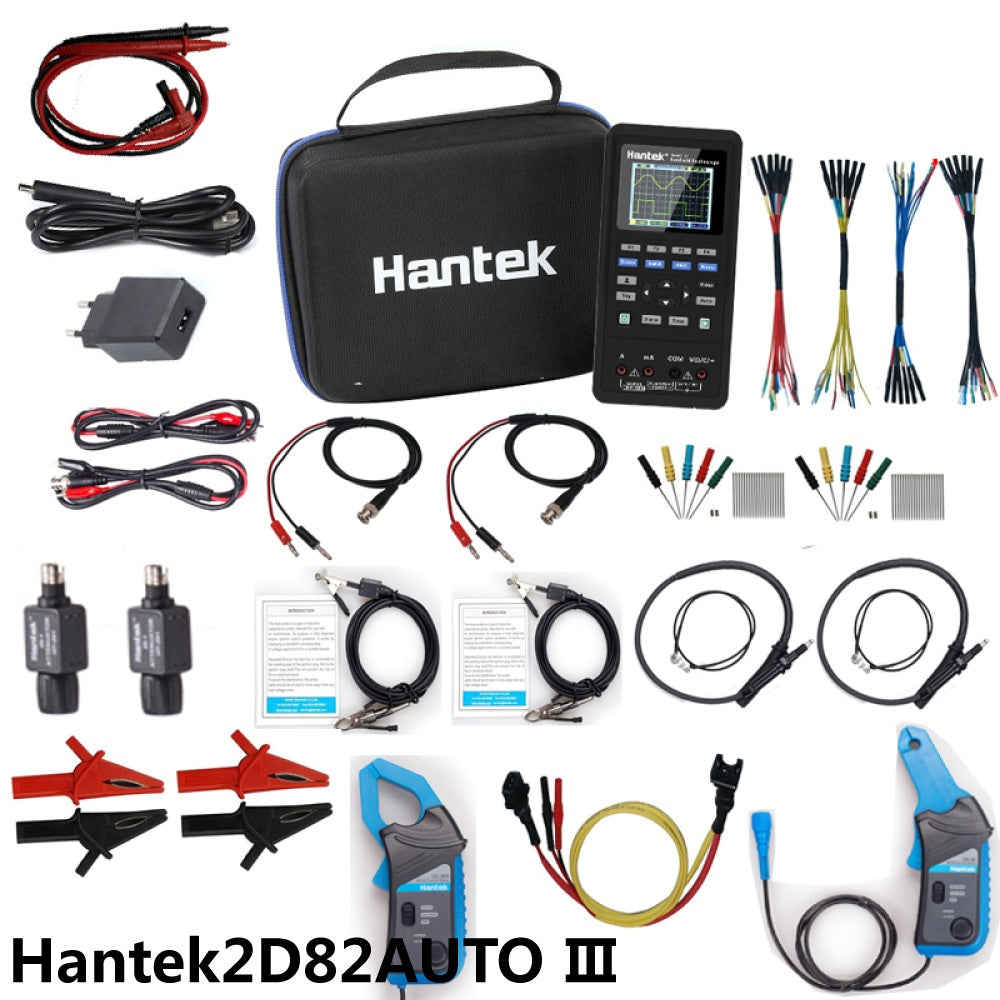

Hantek2D82AUTO |
| Vehicle Testing Mode |
| Vehicle Diagnosis |
Vehicle Diagnostic Function |
Ignition |
Primary Ignition (Voltage) |
| Primary Ignition(current) |
| Primary Ignition(Voltage& Current) |
| Primary Ignition (Crankshaft Senser) |
| Primary Ignition&SecondaryIgnition |
| Secondary |
Secondary Ignition Distributor Type (Plug Lead) |
| Secondary Ignition Distributor Type (King Lead) |
| Secondary DIS (Positive-fired) |
| Secondary DIS or CPC (Negative-fired)) |
| Secondary Coil Output Diagnosis |
| Secondary Ignition&Primary Ignition |
| Sensors |
Air Flow Meter |
Air Flow Meter (Hot Wire) |
| Air Flow Meter (Air Vane) |
| Air FlowSensor (BOSCH Diesel) |
| Air Intake PressureSensor (BOSCH Diesel) |
| Camshaft |
Camshaft (Inductive) |
| Camshaft (AC Excited) |
| Camshaft (Hall Effect) |
| Camshaft (BOSCH Common Rail Diesel) |
| Crankshaft |
Crankshaft Inductive Running |
| Crankshaft Inductive Cranking |
| Crankshaft Hall Effect |
| Crankshaft Sensor &Primary Ignition |
| Distributor |
Distributor Pick-up (Hall Effect) |
| Distributor Inductive Pick-up Cranking |
| Distributor Inductive Pick-up Running |
| Lambda Sensors |
Lambda Sensor Titania |
| Lambda Sensor Zirconia |
| Lambda Sensor Zirconia Pre & Post cat |
| Throttle Position |
Throttle Position Potentiometer |
| Throttle Position Switch |
| Throttle Pedal Switch (Bosch Diesel) |
| ABS Digital Speed Sensor |
| ABS Analog Speed Sensor |
| Coolant Temperature (5V) |
| Coolant Temperature (GM/Vauxhall Simtec |
| Crash Sensor |
| MAP Analog |
| MAP Digital |
| Hall Effect Road Speed Sensor |
| Accelerator Pedal (Bosch Diesel) |
| Bus Diagnosis |
CAN Bus |
CAN Bus Data View |
| CAN Bus Signal Integrity |
| CAN Bus LH Long Capture |
| LIN Bus |
LIN Bus |
| Engine |
Petrol |
Single-point Injector (Voltage) |
| Single-point Injector (Current) |
| Multi-point Injector (Voltage) |
| Multi-point Injector (Current) |
| Injector Voltage & Current |
| Injector Current & Primary Ignition |
| Diesel |
Common Rail Diesel (Current) |
| Injector Bosch CDi 3 (Current) |
| Injector Bosch Diesel (Idling) |
| Injector Bosch Diesel (Accelerating) |
| |
Diesel Glow Plugs |
| Electronic Fuel Pump |
| Carbon Canister Solenoid Valve |
| ERG Recirculation Solenoid Valve |
| Stepper Motor Example 1 |
| Stepper Motor Example 2 |
| Idle Speed Control Valve (Rotary) |
| Idle Speed Control Valve (Electromagmetic) |
| Throttle Servomotor (Idling) |
| Throttle Servomotor (Accelerating) |
| Bosch CDi3 Quantity Control Valve |
| Bosch CDi3 Pressure Regulator Valve |
| Variable-Speed Cooling Fan On |
| Variable-Speed Cooling Fan Off |
| Variable Camshaft Valve Timing |
| Startup & Charge |
Charging Circuits |
Charging Circuits Current/Voltage |
| Charging Circuits Current/Voltage Starting 24V |
| Charging Circuits Current/Voltage Idling 24V |
| Charging Circuits Alternator AC Ripple/Diode Diagnosis |
| |
Relative Compression Petrol |
| Relative Compression Diesel |
| Starting Voltage Drop |
| Oscilloscope Mode |
| Bandwidth |
80MHz |
| Channel |
2CH+DMM+AWG |
|
| Horizontal |
| Sample Rate Range |
250MSa/s(Single-channel), 125MSa/s(Dual-channel) |
| Waveform Interpolation |
(sin x)/x |
| Record Length |
3K samples per dual-channel |
| SEC/DIV Range |
5ns/div~500s/div 1, 2, 5 sequence |
| Vertical |
| A/D Converter |
8-bit resolution,each channel sampled simultaneously |
| VOLTS/DIV Range |
10mV/div~10V/divat input BNC |
| Bandwidth Limit, typical |
20MHz |
|
| Low Frequency Response (-3db) |
≤10Hz at BNC |
| Rise Time at BNC, typical |
≤5ns |
| DC Gain Accuracy |
±3% for Normal or Average acquisition mode, 10V/div to 10mV/div |
| Note: Bandwidth reduced to 6MHz when using a 1X probe. |
| Acquisition |
| Acquisition Modes |
Normal |
| Trigger |
| Type |
Edge |
| Mode |
Auto, Normal, single |
| Level |
±4 divisions from center of screen |
| Trigger Level Accuracy |
0.2div × volts/div within ±4 divisions from center of screen |
| Slope |
Rising, Falling, Rising & Falling |
| Source |
CH1/CH2 |
| Input |
| Coupling |
DC, AC or GND |
| Input Impedance, |
25pF±3 pF, 1MΩ±2% |
| DC coupled |
| Probe Attenuation |
1X, 10X |
| Supported Probe Attenuation Factors |
1X, 10X, 100X, 1000X |
| Maximum Input Voltage |
150VRMS |
| Measurement |
| Cursor |
Voltage difference between cursors: △V |
| Time difference between cursors: △T |
| Automatic Measurements |
Frequency, Amplitude |
| Arbitrary Waveform Generator Mode |
| Waveform Frequency |
Sine: 1Hz~25MHz |
| Square: 1Hz~10MHz |
| Ramp: 1Hz~1MHz |
| EXP: 1Hz~5MHz |
| Sampling |
250MSa/s |
| Amplitude |
2.5Vpp(50Ω) |
| 5Vpp(High impedance) |
| Frequency Resolution |
0.001 |
| Channel |
1CH waveform output |
| Waveform Depth |
512Sa |
| Vertical Resolution |
12 bit |
| Frequency Stability |
<30ppm |
| Output Impedance |
50 Ω |
| DMM Testing Modes |
| Maximum Resolution |
4000 Counts |
| DMM Testing Modes |
Voltage,Current,Resistance,Capacitance,Diode &On-Off |
| Maximum Input Voltage |
AC:600V, DC: 800V |
| Maximum Input Current |
AC: 10A, DC:10A |
| Input Impedance |
10MΩ |
| Measurement Term |
Range |
Accuracy |
Resolution |
| DC Voltage |
400.00mV |
± (0.8% + 5) |
100uV |
| 4.000V |
1mV |
| 40.00V |
10mV |
| 400.0V |
100mV |
| 600.0V |
± (1% + 2) |
1V |
| Overload protection: 400mV: 250V, other: 600Vrms. |
| AC Voltage |
4.000V |
± (1.2% + 5) |
1mV |
| 40.00V |
10mV |
| 400.0V |
100mV |
| 600.0V |
±(1.5% + 5) |
1V |
| Frequency: 40Hz~400Hz; |
| Frequency of 400V and 600V: 40Hz~100Hz |
| DC Current |
40.00mA |
± (1% + 2) |
10uA |
| 200.0mA |
± (1.5% + 2) |
100uA |
| 4.000A |
± (1.8% + 2) |
1mA |
| 10.00A |
± (3% + 2) |
10mA |
| Overload protection: |
| self restoring fuse: 200mA/250V, 4A and 10A range no fuse. |
| AC Current |
40.00mA |
± (1.3% + 2) |
10uA |
| 400.0mA |
± (1.8% + 2) |
100uA |
| 4.000A |
± (2% + 3) |
1mA |
| 10.00A |
± (3% + 5) |
10mA |
| Frequency: 40Hz~400Hz; |
| self restoring fuse: 200mA/250V, 4A and 10A range no fuse. |
| Resistance |
400.0Ω |
±(1% + 3) |
0.1Ω |
| 4.000KΩ |
±(1.2% + 5) |
1Ω |
| 60.00KΩ |
10Ω |
| 400.0KΩ |
100Ω |
| 4.000MΩ |
1KΩ |
| 40.00MΩ |
± (1.5%±3) |
10KΩ |
| Overload protection: 220Vrms |
| Capacitance |
40.00nF |
±(3% + 5) |
10pF |
| 400.0nF |
100pF |
| 4.000uF |
1nF |
| 40.00uF |
10nF |
| 100.0uF |
100nF |
| Overload protection: 220Vrms |
| Diode |
0V~2.0V |
| On-Off |
<50Ω |
| General Specifications |
| Display |
| Display Type |
2.8 inch64K color TFT |
| Display Resolution |
320 horizontal by 240 vertical pixels |
| Display Contrast |
Adjustable |
| Power Supply |
| Supply Voltage |
100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A |
| Power Consumption |
<2.5W |
| Fuse |
T, 3A |
| Battery |
2600mA*2 |
| Environmental |
| Operating Temperature |
0~50 °C (32~122 °F) |
| Storage Temperature |
-40~+71 °C (-40~159.8 °F) |
| Humidity |
≤+104°(≤+40°C): ≤90% relative humidity |
| 106°~122° (+41°C ~50°C): ≤60% relative humidity |
| Cooling Method |
Convection |
| Altitude |
Operating and |
3,000m (10,000 feet) |
| Nonoperating |
| Mechanical Shock |
Random Vibration |
0.31gRMS from 50Hz to 500Hz, 10 minutes on each axis |
| Nonoperating |
2.46gRMS from 5Hz to 500Hz, 10 minutes on each axis |
| Operating |
50g, 11ms, half sine
|
