Yanhua Mini ACDP Module16 Benz Gearbox Renew and Refresh with Free License A101
Yanhua Mini ACDP Module16 Benz Gearbox Renew and Refresh

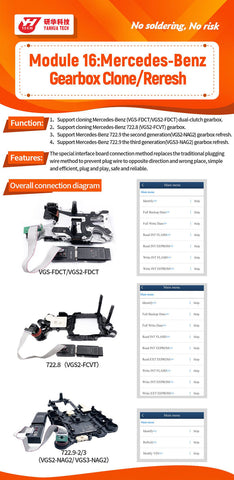

Support cloning Mercedes-Benz (VGS-FDCT/ VGS2-FDCT) dual-clutch gearbox.
Support cloning Mercedes-Benz 722.8 (VGS2-FCVT) gearbox.

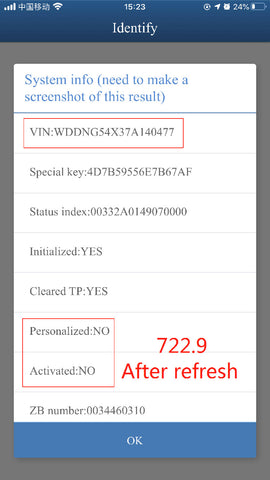

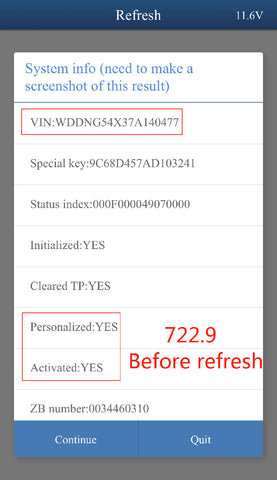

Support Mercedes-Benz 722.9 the second generation (VGS2-NAG2) gearbox refresh.
Support Mercedes-Benz 722.9 the third generation (VGS3-NAG2) gearbox refresh.
The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.

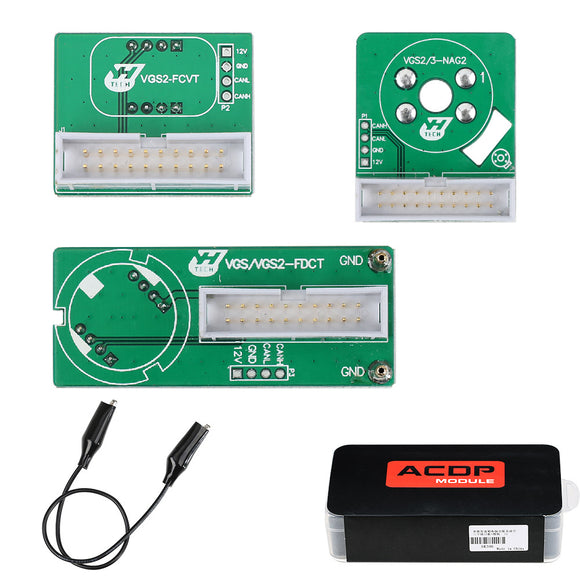

ACDP Configuration List (Module 16 Mercedes-Benz gearbox Clone/Refresh)
| Item No. | Adapters/Parts | Picture | Quantity | Functions |
| 1 | VGS2-FCVT Interface Board |  |
1pc | Applicable to connect MB 722.8 (VGS2-FCVT) gearbox |
| 2 | VGS/VGS2-FDCT Interface Board |  |
1pc | Applicable to connect MB (VGS-FDCT/VGS2-FDCT) dual-clutch gearbox |
| 3 | VGS2/3-NAG2 Interface Board |  |
1pc | Applicable to connect MB 722.9-2/3 (VGS2-NAG2/ VGS3-NAG2) gearbox |
| 4 | GND Cable |  |
1pc | Applicable to connect VGS/VGS2-FDCT Interface board and gearbox (for spare) |
