UT81C 1000V 10A Scope Digital Multimeter Mini Oscilloscope Multimetro Input High Sensitivity Diode USB Interface PC Soft
UT81C 1000V 10A Scope Digital Multimeter Mini Oscilloscope Multimetro Input High Sensitivity Diode USB Interface PC Soft
Introduction:
UT81 series handheld digital oscilloscope multimeters combine oscilloscope and digital multimeterin one. Oscilloscope measurementmode includes signal input, dataprocessing, auto measure,
waveform storage, and transfer.Multimeter mode features AC/DCvoltage and current, resistance,diode, continuity, frequency, dutyratio, and capacitance.
waveform storage, and transfer.Multimeter mode features AC/DCvoltage and current, resistance,diode, continuity, frequency, dutyratio, and capacitance.
Descriptions:
Display Count: 3999
Auto Range: √
Duty Cycle: 0.1%~ 99.9%
Diode: √
Auto Power Off: Can set their own
Continuity Buzzer: √
Display: 160 * 160 Monochrome
Trigger Types: Free Run/Normal/Single Shot
Memory: 10 screens and setups
Contrast and Bright Setup: √
Low Battery Indication: √
USB Interface: √
LCD Backlight: √
Input Impedance for DCV: ≥10Mohm
Specifications:
Model: UT81C
DMM Specifications Range Best Accuracy
DC Voltage (V) 400mV/4V/40V/400V/1000V ±(0.8%+8)
AC Voltage (V) 4V/40V/400V/750V ±(1%+15)
DC Current (A) 400uA/4000uA/40mA/400mA/4A/10A ±(1%+8)
AC Current (A) 400uA/4000uA/40mA/400mA/4A/10A ±(1.5%+8)
Resistance (ohm) 400/4K/40K/400K/4M/40Mohm ±(1%+5)
Capacitance (F) 40nF/400nF/4uF/40uF/100uF ±(3%+8)
Frequency (Hz) 10Hz-10MHz ±(0.1%+3)
Scope Specification:
Bandwidth: UT81B:8MHz UT81C:16MHz
Real-Time Sample Rate: Constant sampling rate (peak sampling) UT81B:40MS/s UT81C :80MS/s
Vertical Accuracy: ±(5%+1)
Input Sensitivity: 20mV/div - 500V/div(1-2-5)
Horizontal Accuracy:±(0.1%+1)
Time-Base Range: 100ns/div - 5s/div(1-2-5)
General Characteristic:
Product Net Weight: 498g
Product Size: 200mm * 100mm * 48 mm
Power: 4 * 1.5V Batteries (not included)
LCD Size: 60mm * 60 mm
Product Color: Red and Grey
Package Size: 24 * 24 * 7cm / 9.4 * 9.4 * 2.8in
Package Weight: 1265g / 2.8lb

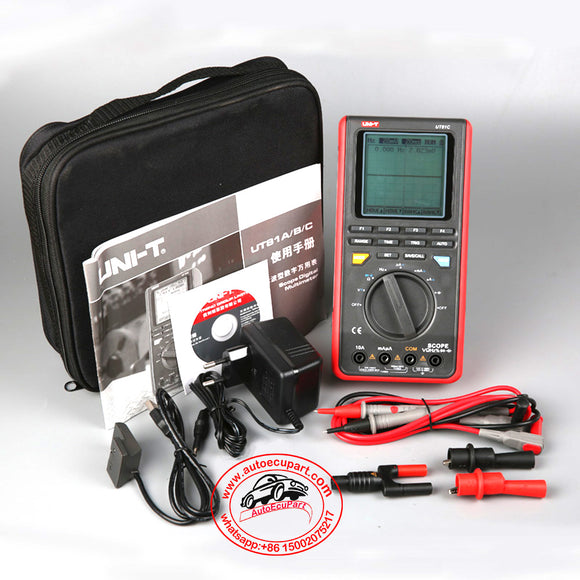

Package Includes:
1 * UNI-T UT81C Scope Multimeter
1 * Test Lead
2 * Alligator Clips
1 * EU Plug Adaptor
1 * USB Interface Cable
1 * PC Software CD
1 * BNC Probe
1 * Manual
