UNI-T UTD2102CEX 100MHZ Digital Storage Oscilloscope 7 Inch LCD 1GS/S 2 Channels

  • $315.00
    Unit price per

Only 110 left!

Item No. LM99M03A
Weight: 3.5 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

1.Dual analog channels width range 1mV/div~20V/div;

2. 7 inches widescreen LCD displays;

3.The new interface style;

4.Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;

5.USB drive system software upgrade;

6.Storage of waveforms setups and interfaces waveforms and setups reproduction;

7.Automatic measurement of 32 waveform parameters;

8.Unique waveform recording and replay function;

9.Multilingual menu displays.

Specifications:



Specification

UTD2102CEX

Channels

2

Bandwidth

100MHz

Sample Rate

1Gs/s

Rise Time

≤3.5ns

Memory Depth

25kpts

Waveform Acquisition Rate

≥2000wfms/s

Vertical Sensitivity(V/div)

1mV/div~20V/div

Timebase Range(s/div)

2ns/div~50s/div

Storage

Setup,Wave,Bitmap

Trigger Modes

Edge, Pluse, Video,Slope,Alternate

Interface

USB OTG

General Characteristic

Power

100-240VAC, 45-440Hz

Display

7 Inches 64K Color TFT LCD, 800×480

Product Color

White and Gray

Product Net Weight

2.2 Kg

Product Size (W×H×D)

306mm ×147mm × 122mm

Standard Accessories

Probe×2 (1×,10× switchable), Power Cord , USB Cable, PC Software CD

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

2 PCs

Standard Carton Measurement (L×W×H)

450mm× 420mm × 280mm

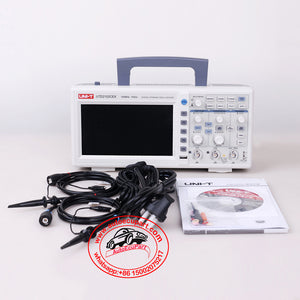

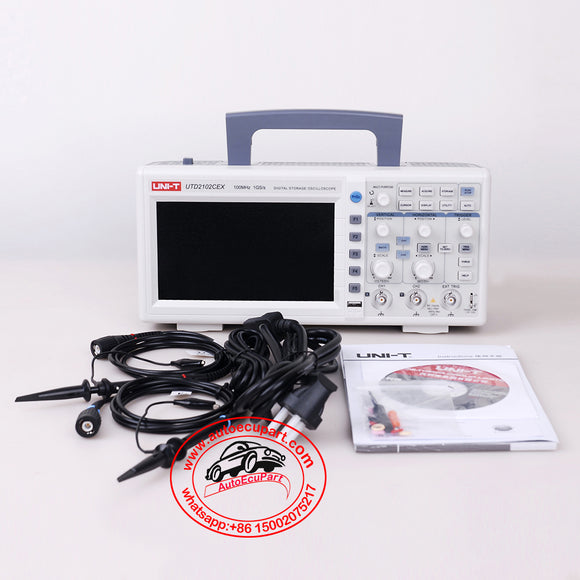

Package Included:

1 x Digital storage oscilloscope

2 x Probes (1:1 and 10:1 can be switched)

1 x Power cable (160cm)

1 x USB cable (140cm)

1 x CD

1 x English user manual

1 x Bag of parts
