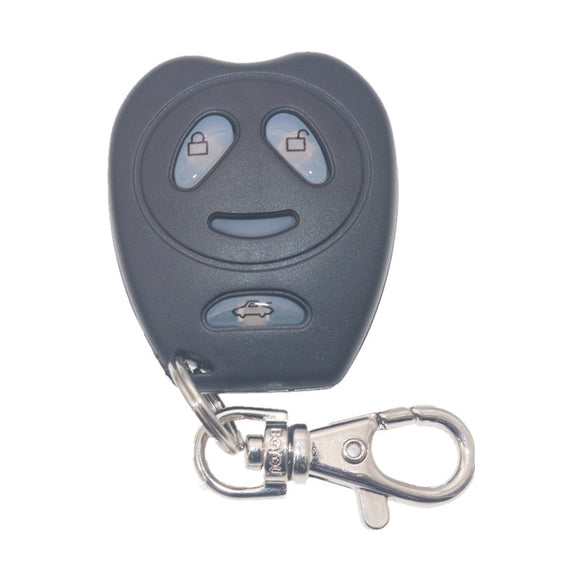

Original New HUM/HCS300 R25 Remote Control Key 315MHz 3 Button for Geely Panda

Frequency:  315MHz

Immobilizer chip: NO

Circuit board: Yes

EEPROM Chip on PCB: UM/HCS300 R25

Key Blade: NO

Fitments: for New models after 2013

How to program the (HCS300 P2W) 433MHz Remote Control
A. Insert original working Key into Igntion, Stay at ACC Position. Turn ON and OFF five times quickly in 5 seconds; and then stay at ON Position.
B. Check the immobilizer LED Light on dashboard: LED flashes fast 3 seconds, and then LED turns off. Be attention: when LED turns ON and then OFF, switch the key from ON to ACC and then to ON; It comes beep sound; it enters learning mode.
C. Press any button on new remote control over 2 seconds. It comes beep sound; the learning is finished. If you need to add more new remote control, press any button on second remote control over 2 seconds until you hear the beep sound. It is same operation if you want to add more remote conrols.
D. When all new remote controls are learned, wait about 10 seconds you will hear beep sound. The learning mode is quit. Pull off the key, test the remote controls.
