[REAL 2 Years Free Online Update] Autel MaxiIM IM508 Universal Key Programmer for Latin America Market

  • $1,529.00
    Unit price per

Only 50 left!
Item No. LH62P149A Weight: 7.8 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

[REAL 2 Years Free Online Update] Autel MaxiIM IM508 Universal Key Programmer for Latin America Market



Manufacturer AUTEL
Multi-Language Spanish / English / Portuguese / Germany / Japanese / French
Update REAL 2 years free online update
Warranty 1 year
7-inch Android touchscreen
Notice Works for Latin American countries



 VW MQB Component Security and Pin Code Calculations:

When working with a VW MQB Based Immo Vehicle and you receive the "server computation error" on your Autel programmer's screen, please follow this link to fill out the VW Request Form: https://94ebldhk61w.typeform.com/to/KkVi1gHz

Once the form is filled out, a tech from the Autel team will contact you to provide you with the Component Security and Pincode for the vehicle that you are working with. Generally, it takes them about 10 minutes to respond during their business hours, which are Monday thru Friday from 9:00AM to 9:00PM Eastern Time, after the form is submitted. You need to be with the vehicle when they contact you because these codes are "rolling," and they change with each key cycle. Do not disconnect the Autel programmer from the vehicle or cycle the vehicle's ignition switch after submitting your request to Autel. Also please make sure to apply additional voltage to the vehicle, if the battery goes dead after you send your request to Autel, the Immo Code will have rolled and the data that Autel gives to you will not be valid. If you have any questions about this process please call Autel USA Tech Support at 1-855-288-3587. As of now, this process only works for Volkswagen MQB Vehicles and does not work for Audi MBQ Vehicles.


Autel MaxiIM IM508 Main Features:

  • Advanced Key Programming
  • PIN / CS Reading (Full Lost)
  • Key Generation
  • Key Programming
  • Command Introduction
  • Backup / Repair IMMO Data
  • IMMO ECU Reset / Adaptation
  • IMMO ECU Regeneration / Coding
  • BMW FEM / BDC Key
  • Programming and ECU Adaptation
  • VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Copy, Full Lost, A6 Full Lost and More
  • 1 Year Free Update Online
  • 2022 Latest version


  • Key Reading / Writing
  • EEPROM / MCU Read / Write


Diagnostic Function of More Than 80 Vehicles In Advanced Level

  • All System Diagnostics
  • Auto Search / VIN Finding
  • Reading / Deleting Error Code
  • Viewing the Live Data Stream
  • Viewing Records of Failure History
  • Store and Data Manager Applications


Autel MaxiIM IM508 Most Commonly Used Reset Services

  • Oil Rest Service: - This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.

  • EPB Service - This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

  • SAS Service - Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration.

  • TPMS Service - This function allows you to quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS replacement and sensor test.

  • BMS Service - The BMS (Battery Management System) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

  • DPF Service - This function is used to manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

  • And More


Autel MaxiIM IM508 Specification:

Operating System: Android™ 4.4.4, KitKat
Processor: Cortex-A9 processor(1.6 GHz)
Memory: 32GB
Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity: Mini USB 2.0; USB2.0; Wi-Fi; Micro SD card slot(supports up to 32GB)
Sensors; Ambient light sensor for brightness auto changing
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life: Around 4.5 hours of continuous use
Battery Charging Input: 5V/1.5A
Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Operating Humidity: 5%-95% non-condensing
Net Weight: 885g(2.31|b.)
Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel MaxiIM IM508 Package Includes:

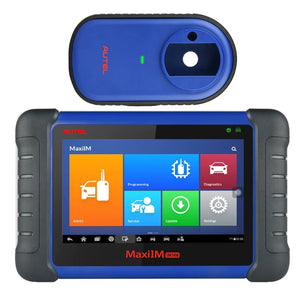

  • MaxiIM IM508 Tablet

  • XP200 Key Programmer

  • Connection Cables

  • USB Adapter

  • Carrying Case
