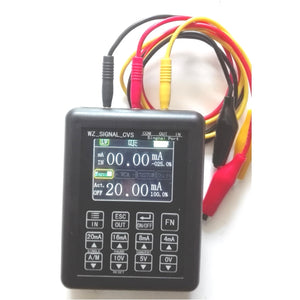

Precision 4-20mA 0-10V Signal Generator Calibrator Constant Current Source 0-20mA Simulator
Precision 4-20mA 0-10V Signal Generator Calibrator Constant Current Source 0-20mA Simulator
Technical Parameters:
Active current output: range: 0-24 mA; resolution: 0.01 mA; maximum load: 750Ω
Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V
Voltage output: range: 0-12 V; resolution: 0.01v; maximum current 30mA
24V voltage output: drive current: 24mA.
Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100Ω
Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2.5 MΩ
A sngle 3.7V lithium battery power supply; the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)
Operating environment: 0 °C - 50 °C.
USB powered and charged.
Internal reverse and overcurrent protection; protection voltage:30V
output automatically
Size: 90mm*70mm*29mm
Active current output: range: 0-24 mA; resolution: 0.01 mA; maximum load: 750Ω
Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V
Voltage output: range: 0-12 V; resolution: 0.01v; maximum current 30mA
24V voltage output: drive current: 24mA.
Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100Ω
Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2.5 MΩ
A sngle 3.7V lithium battery power supply; the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)
Operating environment: 0 °C - 50 °C.
USB powered and charged.
Internal reverse and overcurrent protection; protection voltage:30V
output automatically
Size: 90mm*70mm*29mm
Curves Output
Referential Wiring Circuits Drawing
VIP NOTES:
1. Please DO NOT run out of battery. Do remember recharge it before power off.
2. Please DO NOT use Quick Charger to recharge it. Otherwise, it may cause permanent damages.
3. The USB port charger recommended is 5V 1A or 5V, 500mA, DO NOT exceed 5.5V and 1A current, otherwise, it may cause permanent damages.
Package contents:
1 x Original 0-10V 4-20mA 24V Signal Generator
3 x Aligator Testing clip cable
1 x Professional User Manual
1 x 2A 50cm high quality USB cable
