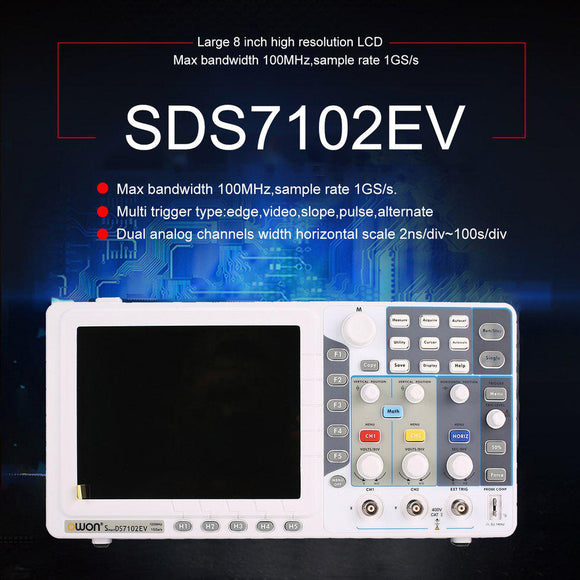

OWON SDS7102EV Digital Storage Oscilloscope 100MHz 2 Channel Logic Analyzer 8 Inch

Main Features:
1. Dual analog channels width horizontal scale 2ns/div~100s/div.
2. Max bandwidth 100MHz,sample rate 1GS/s.
3. Multi trigger type:edge,video,slope,pulse,alternate.
4. Large 8 inch high resolution LCD.
5. Pass / Fail function, ultra-thin body.

Description:
1.SCPI, and Labview supported.
2.newly added function - digital filtering, and current measurement .
3.Widely used in electronic circuit debugging, circuit testing, design and manufacture,
education and training, automobile maintenance and testing.

Parameters:
Brand: Owon
Model: SDS7102EV
Color: white
Power supply: 100V-220V
Channels: 2 + 1 (external)
Bandwidth: 100MHz
Sample Rate: 1GS/s
Rise Time: <=3.5ns
Item size: 45 x 170 x 74mm
Net weight: 1479g

Package Information:
Package Size: 420 x 120 x 220mm/16.54 x 4.72 x 8.66in
Package Weight: 2193g/4.84lb


Packing List:
1 x PC Oscilloscope
2 x Passive Probe
1 x CD(supplied software)
1 x Power Cord
1 x USB Cable
1 x Screwdriver
1 x User Manual
