Free Online Update Original Xhorse VVDI PROG Programmer VVDIPROG
How to get software download link?
Main Feature:
1. The built-in update software allows user to update VVDIProg firmware timely.
2. High-speed USB communication interface enable the software automatically connect.
3. Smart operation mode: the possible causes of error will be listed
4. Reserve ports: for future update.
5. The self-test function enable you check if the machine works well.
6. Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.
Supported chip list
EEPROM
Manufactures | Types | Support | Remark |
for ATMEL | AT24CXX | R | |
AT25XXX | R | ||
AT93CX6 | R | ||
for BOSCH | B3XX | R | |
B4XX | R | ||
B5XX | R | ||
B58XXX | R | ||
for CATALYST | CAT24CXX | R | |
CAT24WXX | R | ||
CAT93CX6[A] | R | ||
for EXEL | XL[S]24CXX | R | |
XL[S]93CX6 | R | ||
for FAIRCHILD | FM24CXX | R | |
NM24CXX | R | ||
NM93CX6 | R | ||
for GRUNDIG | GRXX | R | |
for HOLTEK | HT93CX6 | R | |
for MICROCHIP | 24AAXX | R | |
24[L]CXX | R | ||
93[L]CX6 | R | ||
93AAX6 | R | ||
for MITSUBISHI | M6M800X1 | R | |
for SEIKO | S-24CXX | R | |
S-93CX6 | R | ||
for ST | D80/D160 | R | Can erase the first 32 bytes |
M35080 | R | Can erase the first 32 bytes | |
for NEC | M24CXX | R | |
for ST | ST24CXX | R | |
ST24EXX | R | ||
ST24WXX | R | ||
ST25CXX | R | ||
ST25EXX | R | ||
ST95P0X | R |
Note: R means the type is supported, £ means the type will be supported soon in the future
MCU
Manufactures | Types | Support | Remark |
for MOTOROLA | MC9S12XEP | R | Can automatically determine D-FLASH/EEE space |
MC9S12XA | R | ||
MC9S12XB | R | ||
MC9S12XD | R | ||
MC9S12XDT | R | ||
MC9S12XDP | R | ||
MC9S12XDQ | R | ||
MC9S12DG | R | ||
MC9S12DT | R | ||
MC9S12P | R | ||
MC9S12H | R | ||
MC9S12HY | £ | ||
MC9S12HA | £ | ||
MC9S12HZ | £ | ||
MC9S12XHZ | £ | ||
MC9S12B | £ | ||
MC9S12GC | £ | ||
MC9S12XS | £ | ||
MC9S12K | £ | ||
MC9S12Q | £ | ||
MC9S12C | £ | ||
MC9S12P | £ | ||
MC9HC(9)08 | £ | ||
for ATMEL | ATTINY | £ | |
ATMEGEA | £ | ||
for NEC | uPD70F | £ | |
for ST | TMS370 | £ |
Note: R means the type is supported £ means the type will be supported soon in the future.
ECU
Manufactures | Types | Support | Remark |
VAG | MED17.1-TC1796 | £ | |
MED17.11-TC1796 | £ | ||
VAG MEG17.5-TC1766 | £ | ||
VAG MED17.5.1-TC1796 | £ | ||
VAG MED17.5.2-TC1767 | £ | ||
VAG MED17.5.5-TC1766 | £ | ||
VAG MED17.5.20-TC1766 | £ | ||
VAG EDC17 CP14/CP20-TC1796 | £ | ||
VAG EDC17 CP04-TC1796 | £ | ||
VAG EDC17 C46-TC1767 | £ | ||
VAG EDC17 CP24-TC1796 | £ | ||
VAG EDC17 CP44-TC1797 | £ | ||
VAG EDC17 U01-TC1766 | £ | ||
VAG EDC17 U05-TC1796 | £ | ||
VAG/for Porsche Siemens Continental SDI 3-
TC1796 |
£ | ||
for BMW | MEVD172(N55) | R | |
MEVD172P(N20) | R | ||
MEVD172G(N55) | R | ||
MEVD172S(N55) | R | ||
MEVD1724(N20) | R | ||
MEVD1725(N13) | R | ||
MEVD1726(N55) | R | ||
MEVD1729(N20) | R | ||
MEVD1728(N63/S63) | R |
Note: R means the type is supported £ means the type will be supported soon in the future.
VVDI Prog Connection for Sprinter:
VVDI Prog Programmer Unit Description:
1.16 Pin DIP socket Function:
Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction
2. MCU Reflash Cable
Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
Use method: Soldering the line on pin of chip before read & write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.
3. ECU Reflash Cable
Function: Read & Write engine ECU
Use method: Connect the ECU and R&W
Notes: Please check all connection lines, ensure correct and reliable connection
4.MC9S12 Reflash Cable
Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
Use method: Soldering the line on pin of chip before read & write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection.
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

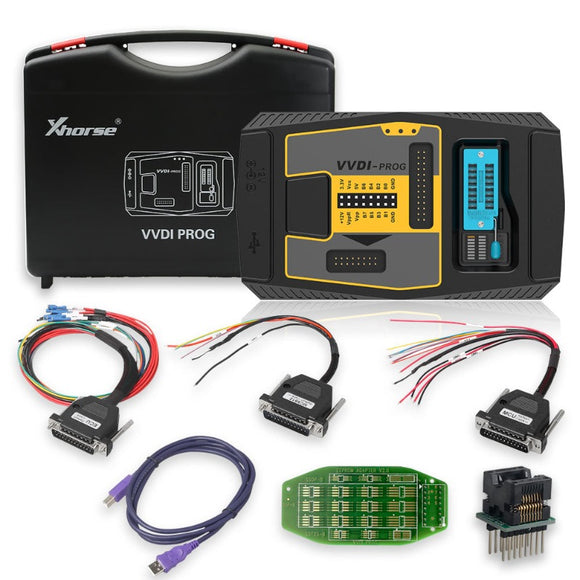

VVDI Prog Programmer Package List:
1. VVDI Prog device
2. EEPROM Socket
3. EEPROM Adapter
4. MC9S12 Reflash Cable V1
5. MCU Reflash Cable
6. ECU Reflash Cable
7. USB B-Tyte Cable
8. TB28FXXX Adapter (Optional)
9. PCF79XX Adapter (Optional)
10. New M35080/D80 Adapter (Optional)
11. New EWS3 Adapter (Optional)
12. New EEPROM CLIP Adapter (Optional)
13. New EWS4 Adapter (Optional)
