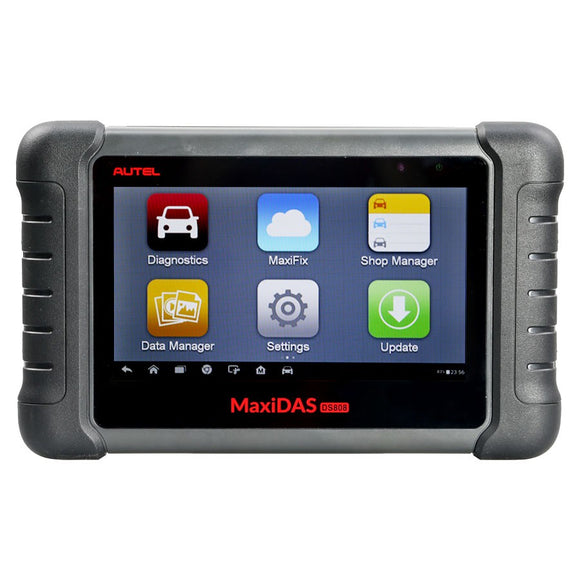

Original Autel MaxiDAS DS808 Tablet Diagnostic Tool Full Set Support Injector Coding & Key Coding Free Update Online
Latest AUTEL MaxiDAS DS808 Full Set Handheld Touch Screen Autel Diagnostic Tools Update Online
AUTEL MaxiDAS DS808K US Version has Chrysler 16Pin Adapter, doesn't have Benz 14Pin Adapter
AUTEL MaxiDAS DS808 EU Version has Benz 14Pin Adapter, doesn't have Chrysler 16Pin Adapter.
Bullet Points
1. ADVANCED DIAGNOSIS and ANALYSIS: DS808 is the upgraded version of DS708, which performs as powerful as MS906, contains complete capabilities for codes, live data, active test, ECU information, adaptation, matching.
2. POWERFUL FUNCTIONS: DS808 includes the most commonly performed service functions, such as: Oil Reset Service, TPMS Programming Service, EPB Service, DPF Regeneration Service, SAS Calibration Service, ABS/SRS Service etc.
3. SPECIALIZED FUNCTIONS: The Autel DS808 includes the Smart AutoVIN, Cloud-based MaxiFix and Shop Manager functions. These new functions make the Autel DS808 better than the old DS708 model, while selling at an even better price than the older model
4. BROAD VEHICLE COVEARGE: DS808 covers for more than 80 US, Asian and European vehicles from the year 1996 to 2017, which includes the exceptional OE Level system coverage for all electronic systems.
5. AUTOMATIC SOFTWARE UPDATING: The Auto Update allows the tool to automatically update the OS, the MaxiDAS system, and the Vehicle. We provide one year update online, and full guarantee
Functions:
1. All Systems Comprehensive Diagnostics for Deep Inspection in Vehicle
Autel DS808 is an ideal diagnostic tool designed to work for diagnoses of complete systems, which allows users to operate functional tests, retrieve vehicle diagnostic information (trouble codes), freeze frame data and live data for various vehicle control systems (engine, transmission, ABS, etc.), providing its users with all the information pertinent to a vehicle's health quickly and in an accessible, reader-friendly format. To name just a few:
1) ECU Information:
Retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other
specifications.
2) Trouble Codes:
Includes Read Codes and Erase Codes functions. Displays detailed information of DTC records retrieved from the test vehicle's ECU and
erases DTC records and other data from the test vehicle's ECU.
3) Freeze Frame:
Displays the freeze frame data of the DCTs.
4) Live Data:
Retrieves and displays live data and parameters from the test vehicle's ECU.
5) Active Test:
During the actuation test, DS808 outputs command to the ECU in order to drive the actuators, and then determines the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators, such as switching an injector between two operating states. (This option is used to access vehicle-specific subsystem and component tests. Available test varies by the vehicle manufacturer, year, and model.
Provides specific subsystem and component tests. This selection may appear as Actuators, Actuator Test, or Function Tests, etc., and the
tests options may vary depending on the manufacturer and model.
And much more …
2. Functions Customized for Specific Needs
The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances
Autel DS808 is specially designed to add benefits of providing its users with quick access to the vehicle systems for 7 commonly performed service functions including:
1). Oil Service Reset – Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
2). TPMS Service – Quickly looks up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced;
3). EPB Service – Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;
4). ABS/SRS Services – Performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;
5). SAS Service – Performs steering angle adjustment, clears steering sensor fault memory and turns off steering wheel warning light;
6). DPF Regeneration Service – Clears particulate matter from the DPF filter to stabilize the filter performance.
7). BMS Service - Perform a reset on the vehicle battery for clearing the fault information and re-match the battery;
8). Brake Bleed - When your brake pedal becomes soft and inconvenient to control, this diagnostic tool can perform bi-directional tests to check the Anti-lock Braking System;
9). IMMO Service - Clear the lost car key's information and program the new key into the ECU database to protect user's car from being stolen;
10). Injector Coding - Make the cylinder better identify injector after ECU or injector is replaced;
11). SAS Service - to perform calibration for the Steering Angle Sensor and clear steering sensor fault memory;
12). Throttle Adaptation - initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately
13). Headlamp, Suspension, Lang change, Odometer, Seats, CHG tire size, TEC learn and WIN DR ROOF, etc
3. Intelligent Applications to Facilitate Your Daily Repair Work
1) MaxiFix:
The cloud-based MaxiFix application launches the on-line troubleshooter database, which not only provides users virtually all common diagnostic trouble codes (DTCs) database for most vehicles, but also serves as a forum allowing to network with others and gives the access to a vast database of repair and diagnostic tips along with proven filed fixes.
2) Shop Manager:
The Shop Manager application helps users to manage the workshop information, customer information records, and keep test vehicle history records, convenient for related information search and helpful for time-saving, which is a great assist in dealing with daily workshop business and improves customer service.
3) Data Manager:
The Data Manager application is used to store, print, and review the saved files, which is a convenient data management system for managing internal program application and reviewing data. Save needed or might-be needed data for later check or problem summary.
4) Data Logging:
Interactive Data Logging sessions enable direct contact with Autel Technical support for first-hand troubleshooting of diagnostic bugs and errors.
5) Notification Center:
Receives the regular on-line messages from the server for system update notification or other service information. Never miss news or updates.
Autel DS808 Supported Automotive Protocols:
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,
fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Autel Maxidas DS808 Vehicle List:
1. European vehicle list:
AUDI, BENZ, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.
2. USA vehicle vist:
GM, CHRYSLER, FORD
3. Asia vehicle list:
SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HOLDEN, HONDA, ACCURA, MAZDA.
How to update Autel DS808 (With Conkit) software:
1. Make sure the Display Tablet is connected to a power source with stable access to the internet.
2. Tap the Update application button from the MaxiDAS Job Menu;
or tap the update notification message when received one;
or tap the Update icon on Vehicle Menu in Diagnostics application.
The Update application screen displays.
3. Check all available updates:
If you decide to update all the items, tap the Update All button.
If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).
4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume
from the break point.
5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.
MaxiDAS DS808 (With Conkit) Specifications:
Operating System: Android™ 4.4.4
Processor: Cortex-A9 processor (1.5 GHz)
Memory : 32GB
Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity: Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors: Ambient light sensor for brightness auto changing
Audio Input/Output:• Input: N/A • Output: buzzer
Power and Battery: 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life: Around 4.5 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp: -10 to 60°C(14 to 140°F)
Storage Temp: -20 to 70°C (-4 to 158°F)
Operating Humidity: 5% - 95% non-condensing
Dimensions (W x H x D): 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight: 788 g (2.42 lb.)
Autel DS808 Customer Reviews:
Review 1:With the Maxisys I was a little skeptical with it...cause i have a thing with Chinese made products...but after researching and viewing videos on this scanner...I was sold with it's functions. When I received it let me tell you...I am impressed as soon as I opened the box. The first thing I like the weight and size of it. It's light and very comfortable moving around especially that it's bluetooth...wow done with cables! Next I read people reviewing about disappointments on the updating...it was not as long as they say...I'm connected to cable modem and the update took just 1hr 1/2 and in the afternoon. I did it Ethernet instead if Wifi to make it faster. So I believe those people had connectivity issues. Now the best part, the speed of this thing...incredible. Wow the booting up, the ease of touch screen...it feels like navigating through my Samsung S6. I've had this for a week...it it already saved me money. I had a 2016 LandRover RangeRover that needed a rear brake repair...when it came time for the repair, I had no knowledge it had electronic parking brake...so I almost thought I was going to lose that job till I checked to see If the Maxisys had the electronic brake release feature...and shocking it did!! I was so happy! Next job I had was a 2009 Hyundai Sonata 4cyl, complaint was it had a 2-1 rough downshift...found there's a recall that needed to be reprogrammed on these symptoms...guess what...this thing has a Transmission ECU reset feature...and it worked! Unbelievable! I'm very happy with this and also glad I didn't go as far as investing in Snapon or Matco products. It's good enough for me!Review 2:I think DS708 is the first generation of iconic device for Autel, because of its reasonable price and cost efficient function. I owned one DS708 for many years, but regret that it will not be updated any more. So I intended to add its new extended version- DS808 for my small repair shop, which can fully meet my requirements. Its new CPU and LCD touch screen, dramatically improved the entire users’ experience, much more smooth comparing with DS708. Personally, I would recommend this tool for those small shops with limit budgets. Of course, if money is not a problem, Maxisys Elite may be your good choice.
Review 3:Actually I’m self-maintainer not a shop guy, I already have Diaglink but need more professional device, which can help me do some features as adaptation or Matching & lots of things. I do like 908P but expensive, so I’m buying DS808, affordable price and good performance.
Review 4:Compatible to my cars,it seems it is compatible to many US, European’Asian vehicles ,user friendly and has software for different vehicle models and systems. Very handy and has different adapters for the car models, I will use the equipment to scan and diagnose.
Would recommend this product. Worth the money! And Motorzone send me a free headset.Sounds good.
Autel DS808 Package Includes:
1pc x USB External
1pc x Power Adapter
1pc x USB External Power AdapterUser
1pc x ManualQuick reference guide
1pc x Mini USB Cable
1pc x User Manual
1pc x Quick Guide
1pc x Benz-14
1pc x Chrysler-16
1pc x BMW-20
1pc x Kia-20
1pc x Nissan-14
1pc x GM/Daewoo-12
1pc x Honda-3
1pc x VW/AUDI-2+2
1pc x Mitsubishi/Hyundai-12+16
1pc x Benz-38
1pc x PSA-2
1pc x Fiat-3
