Hantek iDSO1070A 2CH 70MHz 250MSa/s iPhone/iPad/Android/Windows Oscilloscope WIFI/USB Communication
iDSO1070A
iPhone/iPad/Android/Windows Oscilloscope, Multi-touch Operation.WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.Build-in Lithium Battery with 4 hours endurance, no need of External Power. Floating Measurement is available, safe and convenient.Can be connected with iPad and iPhone at the same time. When operating on iPad, it can also be observed on iPhone.Good mechanical design with small size which is convenient for traveling.
Features:
iPhone/iPad/Android/Windows Oscilloscope, Multi-touch Operation.
WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.
Build-in Lithium Battery with 4 hours endurance, no need of External Power. Floating Measurement is available, safe and convenient.
70MHz Bandwidth, Real-time Sampling Rate 250MSa/s
Can be connected with iPad and iPhone at the same time. When operating on iPad, it can also be observed on iPhone.
Good mechanical design. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved
Small size which is convenient for traveling.
Software Support:IOS,Android,Win10,Win8, Win7, Windows NT ,VISTA, etc.
More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
FFT spectrum analyzer
Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
The waveform data can be output as EXCEL, BMP, JPG according to time and voltage.
|
Model |
iDSO1070A |
|
Bandwidth |
70MHz |
|
Channel |
2 CH |
|
Real-time Sampling Rate |
250MSa/s(singal channel), 125MSa/s(two channels) |
|
Sampling Mode |
Sampling,Vmax,Vrms |
|
Average Sampling |
Average waveform, times: 4, 8, 16, 32, 64, 128 |
|
Memory Depth |
6K |
|
Rise time |
≤5ns |
|
Time BasePrecision |
±50ppm |
|
Time Base Range |
45s/div-500s/div(1-2-4sequences) |
|
Input Coupling |
DC, AC, GND |
|
Input Impedance |
Resistance: 1MΩ; Capacitance:25pF |
|
Probe Attenuation Coefficient Setting |
1×, 10×, 100×,1000 |
|
Max Input Voltage |
35Vpk(DC+peak) |
|
Waveform Interpolation |
Step, Linear, Sin(x)/x |
|
Input Sensitivity |
10mV/div~5V/div |
|
Vertical Resolution |
8Bit |
|
Vertical Displacement Range |
10mV~5V/div@x1probe;100mV~50V/div@x10probe; |
|
1V~500V/div@x100probe;10V~5KV/div@x1000probe |
|
|
Position Range |
±4division |
|
Low Frequency Response |
≤10Hz(at input BNC) |
|
DC Gain Accuracy |
±3% |
|
Bandwidth Limit |
20MHz |
|
Trigger Mode |
Auto, normal, signal |
|
Trigger Type |
Edge,Alternative |
|
TriggerPrecision |
±4division |
|
Trigger Range |
±4V |
|
Trigger Sensitivity |
0.02 division |
|
Trigger Source |
CH1,CH2,EXT |
|
Waveform Signal Process |
+,-,x,÷,FFT, invert |
|
Temperature |
Operating: 0C-40C-; Non-operating: -20C--60C |
|
Humidity |
Below 35C, ≤90%relativehumidity;35C-40C, ≤60%relativehumidity |
|
Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
|
Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
|
Volume |
190mm *100mm * 35mm |
|
Weight |
0.7KG |
|

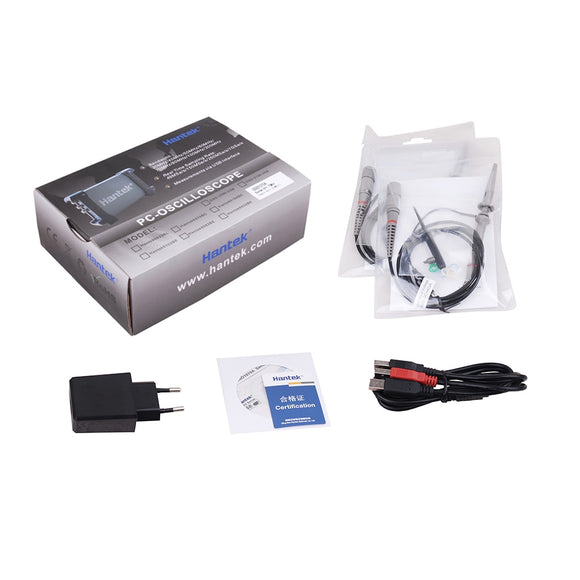

Accessory |
2passive probes -PP80 |
