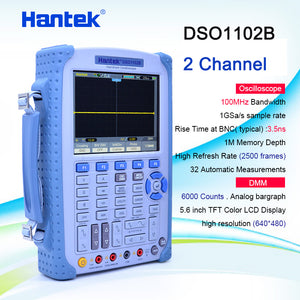

Hantek DSO1102B Portable Handheld Digital Oscilloscope Multimeter 100MHz 2 Channel
Hantek DSO1102B Portable Handheld Digital Oscilloscope Multimeter 100MHz 2 Channel
Main Functions:
>100MHz Bandwidth Oscilloscope;
>1GSa/s sample rate, 1M Memory Depth, and 6000 Counts DMM with analog bargraph;
>5.6 inch TFT Color LCD Display, High Resolution(640*480).
Features:
• 100MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
• 1M Memory Depth.
• High Refresh Rate (2500 frames).
• Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed
• One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
• Easy-to-use pop-up menu with built-in multi-language help system.
• 32 Automatic Measurements.
• Waveform Math: Add, Subtract, Multiply, and Divide.
• Store and recall over.
• Automatic cursor tracking measurements.
• XY Mode.
• Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
• Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
• Pass/Fail function compares a stored waveform to an unknown input.
• Average Mode for smoothing waveforms.
• Square Wave Output (2V, 1kHz) for probe adjustment.
• USB Host/Device 2.0 full-speed interface; support removeable disk; LAN Option, easy to control by PC or long-distance.
• Dimensions (mm): 240(L)x165(W)x50(H), be carried easily.
Specifications:
| Model | DSO1102B | ||
| Bandwidth | 100MHz | ||
| Channel | 2 | ||
| Real-Sample Rate | 1GSa/s | ||
| Equivalent Sample Rate | 25GSa/s | ||
| Record Length | 1M | ||
| Rish time | ≤3.5ns | ||
| Timebase Accuracy | ±50ppm | ||
| Time Base Range | 4ns/div-40s/div | ||
| Input Impandance | 1MΩ | ||
| VOLTS/DIV Range | 2mV/div-5V/div | ||
| A/D Converter | 8bit | ||
| Position Range | ±50V(5V/div), ±40V(2V/div-500mV/div), | ||
| ±2V(200mV/div-50mV/div), ±400mV(20mV/div-2mV/div) | |||
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; | ||
| ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. | |||
| Bandwidth Limit | 20MHz | ||
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | ||
| Trigger Source | CH1, CH2 | ||
| Math | +, -, x, ÷, FFT, Invert | ||
| Cursor Measurement | Voltage difference between cursors: ΔV; | ||
| Time difference between cursors: ΔT; | |||
| Reciprocal of ΔT in Hertz (1/ΔT); | |||
| Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF | ||
| DMM Max. Resolution | 6,000 Counts | ||
| Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity | ||
| Max. Input Voltage | AC: 600V, DC: 800V | ||
| Max. Input Current | AC:10A , DC: 10A | ||
| Max. Input Impandance | 10MΩ | ||
| Display | 5.6"TFT 16K Color Display, 640*480 dots | ||
| Size | 245mm x 163mm x 52mm | ||
| Weight | 3.0KG( with Package) | ||
| Standard Probe | PP150x2 | ||
