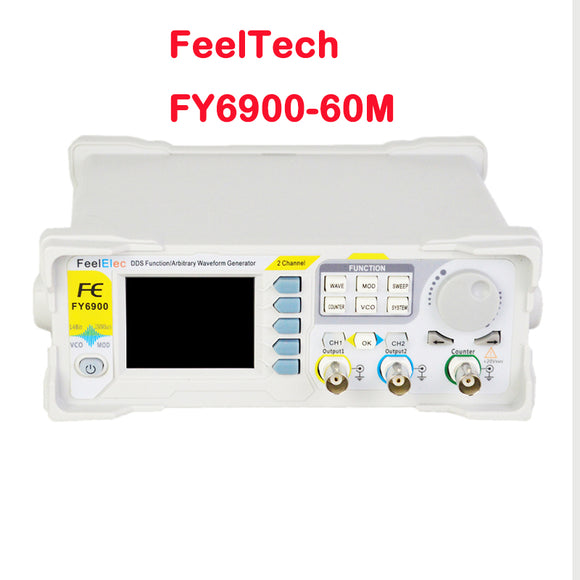

FeelTech FY6900 20M-60M Function Signal Generator High Precision Digital DDS Dual-channel Function Signal/Arbitrary Waveform Generator

Quantity

Only 26 left!

Item No. LM99M76A-4 Weight: 1.2 kg

Estimated: Standard 7-15 working days.
Expedited Shipping 3-6 working days.

Offer 20M, 30M, 50M, 60M four models for choice!! Please select the correct model you want!

Please Leave message for Voltage and AC Power adapter Type:
110V US
230V UK
220V EU
240V AU

Package List:
1 * DDS Signal Generator
1 * Power Cable
1 * USB Data Cable
1 * BNC-BNC Cable
2 * BNC-Clip Cable

frequency characteristic
Product Model	FY6900-20M	FY6900-30M	FY6900-50M	FY6900-60M
Frequency range of Sine wave	0~20MHz	0~30MHz	0~50MHz	0~60MHz
Frequency range of square wave	0~15MHz	0~20MHz	0~25MHz	0~25MHz
Frequency range of other waves	0~10MHz	0~10MHz	0~10MHz	0~10MHz
Minimum adjustable width of pulse wave	20ns
Minimum Frequency Resolution	1μHz
Waveform Length	8192 points (8K points) *14Bits
Waveform sampling rate	250MSa/s
Vertical Resolution of Waveform	14 Bits
Amplitude range (peak to peak)	frequency≤5MHz	5MHz< frequency≤10MHz	10MHz< frequency≤20MHz	frequency >20MHz
Amplitude range (peak to peak)	1mVpp~24Vpp	1mVpp~20Vpp	1mVpp~10Vpp	1mVpp~5Vpp
Amplitude resolution	1mV
Output impedance	50Ω±10%（typical）
Bias Adjustment Range	frequency≤20MHz:±12V； frequency >20MHz: ±2.5V
Minimum Bias Resolution	1mV
Phase adjustment range	0~359.99°
Minimum phase resolution	0.01°
display	2.42.4 inches TFT color liquid crystal display
Interface	115200 bps
Power Supply	AC100V~240V
environment condition	temperature：0~40℃ humidity：﹤80%

·Frequently Asked Questions

Fault phenomenon	Solution
Turn the power button to the "-" side, the signal generator screen is still not lit, there is no display, the channel indicator is not lit	1) Check if the power connector is connected. 2) Check that the power button is in place. 3) After completing the above checks, restart the instrument. 4) If you still cannot use the product properly, please contact us.
Signal generator CH2 is locked	1) Check that the signal generator is operating in sync. Press the SYSTEM button -> SYNC Enter the sync settings interface to cancel all sync parameters. 2) The power to restart the signal generator can also be unlocked.
Correct setting but no waveform output	1) Check that the BNC cable is securely connected to the corresponding [CH1] or [CH2] channel output port. 2) Check the BNC cable for internal damage. 3) Check that the BNC cable is tightly connected to the test instrument. 4) Check if the upper side indicator of the [CH1] or [CH2] button is lit. If it is not lit, press the corresponding button to make its indicator light. 5) If you still cannot use the product properly, please contact us.
