FNIRSI-1013D Digital USB Oscilloscope 1013D 2 Channels 100MHz*2 Band Width 1GSa/s Sampling Rate 7In TFT LCD Screen

  • $168.00
    Unit price per

Only 39 left!
Item No. LM99M115 Weight: 1.5 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

FNIRSI-1013D Digital USB Oscilloscope 1013D 2 Channels 100MHz*2 Band Width 1GSa/s Sampling Rate 7In TFT LCD Screen




  • Intelligent anti-burn, 1X can withstand up to 400V withstand voltage.
  • 100MHz analog bandwidth @ 1GSa/s sampling rate(1X = 5MHz,10X = 100MHz).
  • Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
  • Capacitive touching screen, the same as the touching mode of modern mobile tablet, is not a resistive touching screen with ancient nail operation.
  • High measurement voltage range, 1X can measure 0~40V, 10X can measure 0~400V,100X can measure 0~4000V.
  • Up to 12 parameters measurement:VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period.
  • Cursor measurement function, it is convenient to manually measure the period and frequency and voltage.
  • Complete triggering function (single, normal, automatic).
  • At any time, the waveform display (pause function) is frozen.
  • Equipped with high efficiency One-button AUTO.
  • One-button waveform storage and screenshot.
  • Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
  • Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
  • Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis.
  • Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.
  • FFT display function, can analyze the spectral characteristics of the signal.
  • Built in 6000mAh rechargeable lithium battery, fully charged for 4 hours of continuous use at the highest screen brightness.
  • Memory compression technology, waveform refresh screen does not flicker.
  • Screen brightness adjustment.
  • Background g-r-i-d brightness adjustment.
  • Ultra thin, easy to carry.



  • Material: ABS
  • Color: black
  • Analog band width: 100MHz * 2
  • Number of channels: 2 channels
  • Maximum real time sampling rate: 1GSa/s
  • Vertical sensitivity: 50 mV/div~500 V/div
  • Horizontal time base range: 50S/div~10nS/div
  • Maximum test voltage: 40V (1X probe), 400V (10X probe)
  • Storage depth: 240Kbit
  • Input resistance: 1M
  • ADC accuracy: 8bits
  • Coupling mode: AC/DC
  • Trigger mode: Single, Normal, Auto
  • Trigger edge: Rising edge/Falling edge
  • External trigger voltage: 0~40 V
  • Display: 7 inch - 800*480
  • Operating: Capacitive touching screen + gesture
  • Extension ports: USB picture export
  • Power supply: 1 * lithium battery, 6000mAh (included)
  • Item size: 184 * 124 * 50mm / 7.2 * 4.9 * 2.0in
  • Package size: 230 * 150 * 60mm / 9.1 * 5.9 * 2.4in
  • Package weight: 1000g / 2.2lb

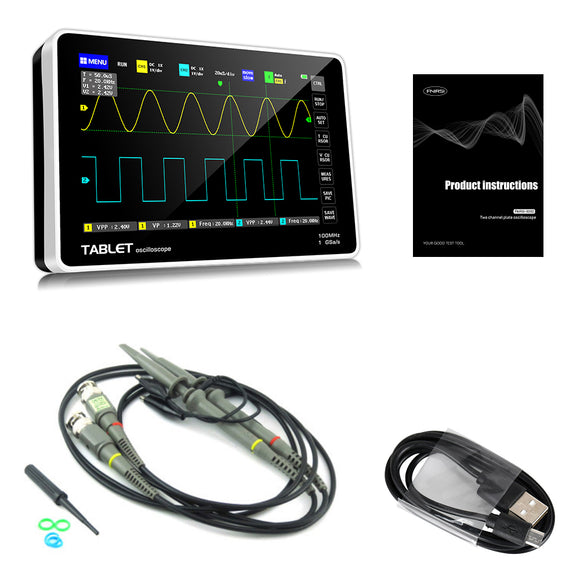

Packing List:
1 * 1013D Oscilloscope Host
2 * Matching 100MHz Probe (1X and 10X)
1 * USB Data Line
1 * User Manual (English)
