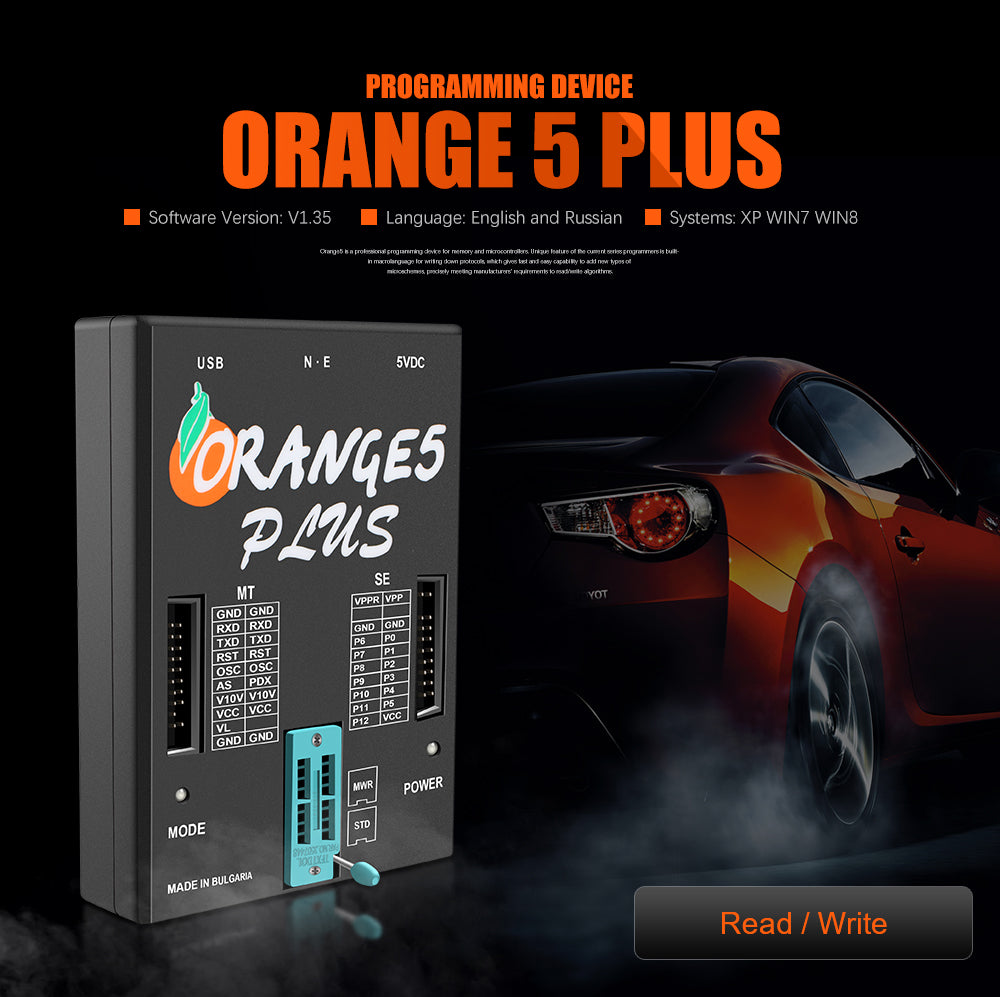

China Orange5 Plus V1.35 Programmer with MTRK, TMS, M08V, Immo HPX, NEC V850ES

  • $209.00
    Unit price per

Only 50 left!
Item No. LP99P035 Weight: 0.8 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

China Orange5 Plus V1.35 Programmer with MTRK, TMS, M08V, Immo HPX, NEC V850ES


Notice:
1. Software Version: V1.35, Not Support Update.
2. With USB Dongle in Package, Good Quality and Work Stable

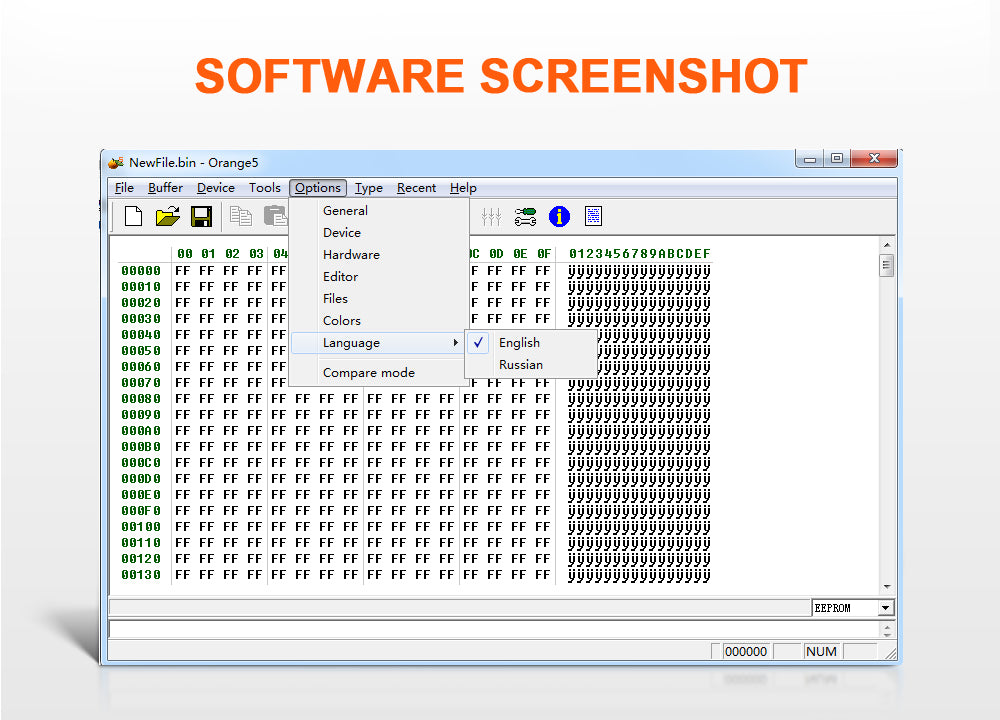

3. Language: English, Russian and Chinese
4. Operating Systems: XP, WIN7, WIN8



V1.35 Orange5 Programmer don't support V850 renesas.
old version V1.34 Orange5 Programmer support V850 renesas.

-- except V850 Renesas, Orange5 V1.35 support more functions than V1.34




Orange5 Plus Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART


Orange5 Plus Feature:
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.

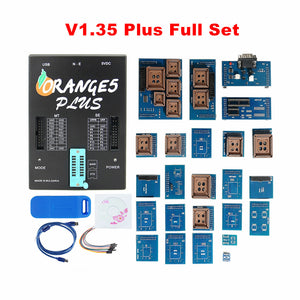

China Orange5 Plus V1.35 Packing List:
Orange-5 programmer 1
Power adapter 1
USBcable 1
Incircuit wire 10
SOIC8/DIP8 Expert adapter 1
SOIC8/DIP8 adapter 1
SOIC8_14_93Cxx adapter 1
SSOP8/DIP8 1
Lead with clips SOIC8 & DIP8 1
Adapter 05L28/05B 1
Adapter 908AS60/AZ60 QFP64 1
Adapter 68HC(7)05P3/E6 1
Adapter 05B/X_705B/X QFP64 V2 1
Adapter 11PA8/11E9 QFP64 1
Adapter 68HC05H12 1
Adapter 68HC11EA9 1
Adapter 908AS60 1
Adapter 9S12Dxx 1
Adapter 912Dxx 1
Adapter 9S12X 1
Adapter 912B32 QFP80 1
Adapter 68HC11F1 1
Adapter 68HC11L6 1
Adapter 68HC11KA4 1
Lead 11E9(20) with power 1
Lead for EWS3 mask 0D46J 1
Adapter TMS374C003A 1
Adapter MSP430F 1
Adapter 68HC11KA4 PLCC68 1
Adapter 908JL 1
Adapter PCF7941 1
Adapter 9S12XE 1
