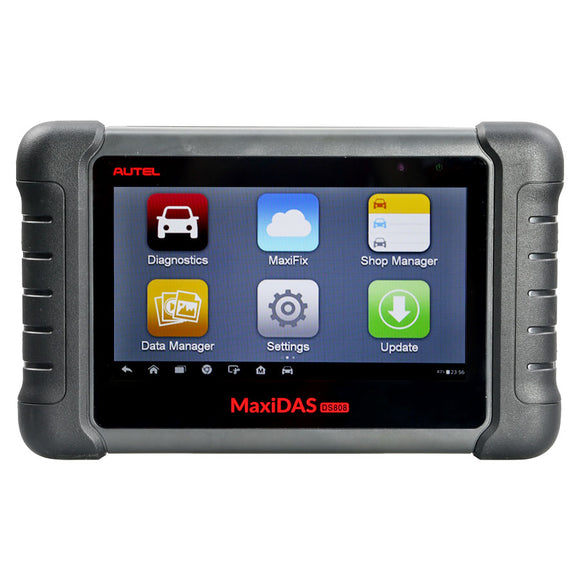

Autel Maxidas DS808 Auto Diagnostic Tool Update Version of Autel DS708
Top 6 Reasons to get AUTEL MaxiDAS DS808:
1. Handheld 7inch Touch Screen Android System with an extensive coverage of OE-level diagnostics, coverage for more than 80 US, Asian and European vehicle makes
2. Support New Function Injector Coding & Key Coding
3. Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
4. Free Update Online for One Year, after one year it will cost 289usd per year.
5. Multi-Language: Default language is English, we can authorize other language like French, Germany, Korean, Japanese, Russian, Spanish, Portuguese, Polish, Italian, Dutch & Swedish.
If you need other languages, please provide us "Country" and "Language" to confirm first. Cost to change language is 120usd.
6. Autel Maxidas DS808 is standard set, if you prefer full set with all adapters, please choose Autel Maxidas DS808K Full Set
7. If you want to do TPMS Function with Autel MaxiDas DS808, please buy Autel MaxiTPMS TS401 to work together.
Autel Maxidas DS808 Diagnostic Function:
retrieve ECU information,
read & erase DTCs
view live data
perform active tests.
The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, such as engine, transmission, antilock brake system (ABS), airbag system (SRS) and more.
Autel Maxidas DS808 Vehicle List:
1. European vehicle list:
AUDI, BENZ, BMW, DACIA, EU FORD, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE.
2. USA vehicle vist:
GM, CHRYSLER, FORD
3. Asia vehicle list:
SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HOLDEN, HONDA, ACCURA, MAZDA.
Difference between Autel Maxidas DS808 and Autel Maxidas DS708:
Autel Maxdidas DS808 Screen Display:
Maxidas DS808 Specification:
Recommended Use Indoor
Operating System Android™ 4.4.4
Processor Cortex-A9 processor (1.5 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors Ambient light sensor for brightness auto changing
Audio Input/Output Input: N/A • Output: buzzer
Power and Battery 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life Around 4.5 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. -10 to 60°C(14 to 140°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight 788 g (2.42 lb.)
Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed,Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Autel DS808 Package List:
USB External Power Adapter
USB External Power Adapter
User Manual
Quick reference guide
Main cable
Carry Case Mini
USB Cable
