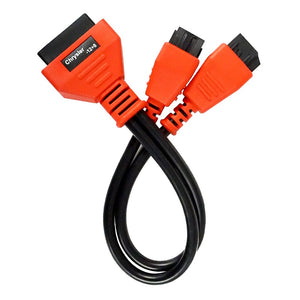

Aftermarket Chrysler 12+8 adapter Cable 12+8 Connector Cable for Autel DS808 Maxisys MS906 908 PRO ELITE

  • $16.00
    Unit price per

Only 28 left!
Item No. LH62P102 Weight: 0.2 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

Aftermarket version The Chrysler 12+8 Adapter is Autel's bypass for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scan tool to only reading DTCs and viewing data.

2018 and newer Chrysler, Dodge, Ram, Jeep, and Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM. The new Chrysler 12+8 Diagnostic Cable allows communication with latest model Chrysler, Dodge, Jeep, Fiat & Alfa vehicles.

Suitable for:

The Cable Adapter can be used with Autel Maxisys Series Scanners ,such as MS906,MS906BT,MS906TS,MS908, MS908S, MS908S PRO, Maxisys Elite etc.


What is it used for?


1. Use with Autel MaxiSys scanner to diagnose on Chrysler Jeep Renegade Wrangler 300C after 2018 year
2. Most 2018 and newer FCA vehicles include a Security Gateway Module.

Expect to see this message when scanning a Chrysler with the Security Gateway Module:
DEVICE UNABLE TO COMMUNICATE WITH THE CONTROL UNIT
Placement of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.

OBDII Cable Adapter for Autel maxisys Chrysler/Dodge/Jeep/Fiat/Alfa 12+8

Access for Chrysler and for Fiat Vehicles Using Secure Gateway Module
Enables Read and Clear Codes
Perform Active Tests
Required to Access 80% of 2018 for Chrysler and for Fiat vehicles
Required to Access 100% of 2019 for Chrysler and for Fiat Vehicles

Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway Module:

2013+ RAM Promaster
2015+ Fiat 500x
2015+ RAM Promaster City
2016+ Jeep Renegade
2017+ Alfa Romeo Giulia
2017+ Jeep Compass
2017+ Jeep Cherokee
2018+ Jeep Wrangler
2018+ Ram Trucks
2018+ Dodge Durango
2018+ Jeep Wrangler (JL Body only, not JK)
2018+ Dodge Journey
2018+ Jeep Grand Cherokee
2018+ Chrysler Pacifica
2018+ Chrysler 300
2018+ Dodge Charger
2018+ Dodge Challenger
2019+ Most Fiat/ Chrysler/ Jeep/ Ram vehicles
2020+ ALL FCA vehicles

Package List:
1 x Chrysler 12+8 Cable Adaptor for Autel MaxiSys
