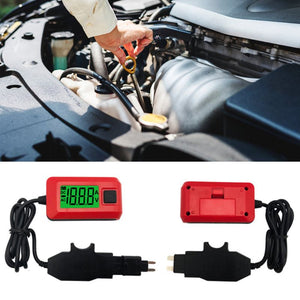

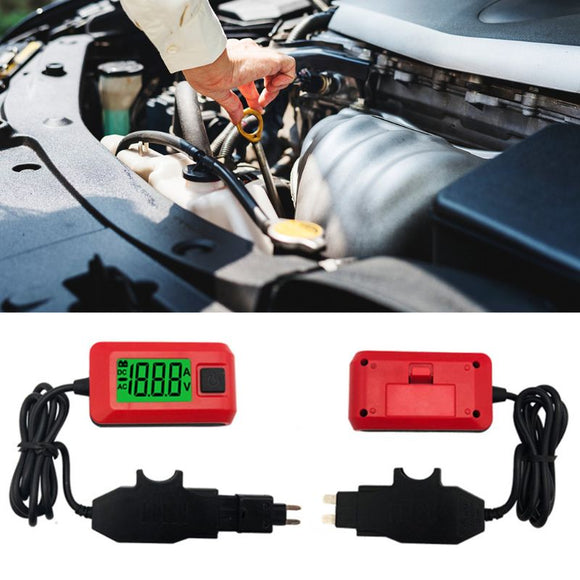

12V 23A Car Current Tester Multimeter Lamp Auto Repair tool Range 0.01A~19.99A

Specification:
Measurement range: 0.01A~19.99A

Max Load: 20A/48Vdc for max.10 secs

Accura celectrical circuity: ±(2% of reading + 2 digits)

Fuse type Power Supply: standard

Power Supply: 12V 23A



Operating Condition

Temperature 0°C~40°C,

relative humidity<75%

Storage Condition

temperature -10°C~50°C,

relative humidity<80%




Features
Ideal for fault finding on automotive or commercial vehicle electrical circuit
Easy to use
Quick measurement and high accuracy
Measurement range: 0.01A~19.99A
Max load: 20A/48Vdc for max.10 secs.
Powered by a 23A 12V battery (not include battery )



Operation Instruction
1.Turn off the vehicles' engine.
2. Take out the fuse and put it in slot of the AE150. Please make sure the circuit protection is correct . (The detection fuse of the tester is 20A/48 V, standard type)
3. Insert the plug of the tester into the vehicle fuse socket.
4. If necessary, start the vehicle engine and energize the circuit first. Then turn on the detector by pressing the power switch
5.Under test, operate the circuit and the display will show the measured current.
6. Turn off the tester by pressing the power button again when you finish the measurement.
