Pocket Metric Vibration Pen Meter

  • $399.00
    Unit price per

Only 17 left!
Item No. AEP-63E Weight: 1.0 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

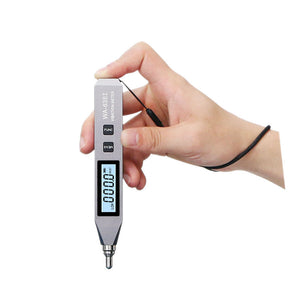

The Vibration Pen is a portable, handheld vibration meter designed for operators, maintenance personal and inspectors that complies the ISO 2372 Standard for Mechanical Vibration of Machines.



Features:

  • Quick and Easy to Setup and Use
  • Backlit LCD Display for Low Light Conditions
  • Velocity, Acceleration and Displacement Measurements
  • Peak Hold Function
  • Hand Pressure
  • 30 Hour Battery Life (Continuous Use)
  • Rechargeable Battery
  • Conforms to ISO2372

backlit LCD display for low light and direct sunlight conditions and a simple two button operation. The Vibration Pen is capable of measuring Acceleration, Velocity and Displacement and can display the highest measurement using the Peak Hold function. The rechargeable lithium-ion battery allows for up to 30 hours of continuous measurements and recharges using a standard 5VDC USB charger which is provided with the kit. An ISO 10816-1 Vibration Severity Chart is included with the kit for easily referencing the measurement with industry standards.



Specifications:

Battery Life: 30 Hours on Full Charge
Charger: 5V USB Wall Charger (Included)
Velocity Range: 0.1~199.9m/s2
                          Peak(RMS×1.414)
                         speed:0.1~199.9 mm/s RMS
                         displacement:0.001~1.999 mm P-P(RMS×2.828)

Frequency Range: 10Hz to 1kHz (ISO Standard)
Acceleration Range: 0-20g’s Peak
Frequency Range 1: 10Hz to 1KHz
Frequency Range 2: 10Hz to 15kHz
Frequency Range: 10 to 500Hz


ISO 10816-1 Vibration Severity Chart:
