NANO MINI 3*3mm MSOP8 Pogo PIN Adapter Chip Probe Touch Holder for in-circuit Dashboard Airbag SRS EEPROM Universal 0.65mm 8 Position

Nano MINI 3*3mm MSOP8 Pogo PIN Adapter Chip Probe Touch Holder for in-circuit Dashboard Airbag SRS EEPROM Universal 0.65mm 8 Position

  • $56.00
    Unit price per

Only 30 left!
Item No. LM99M166 Weight: 0.15 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

MSOP8 NANO MINI 3*3mm Pogo PIN Adapter Chip Probe Touch Holder for in-circuit Dashboard Airbag SRS EEPROM Universal  0.65mm 8 Position





Features:

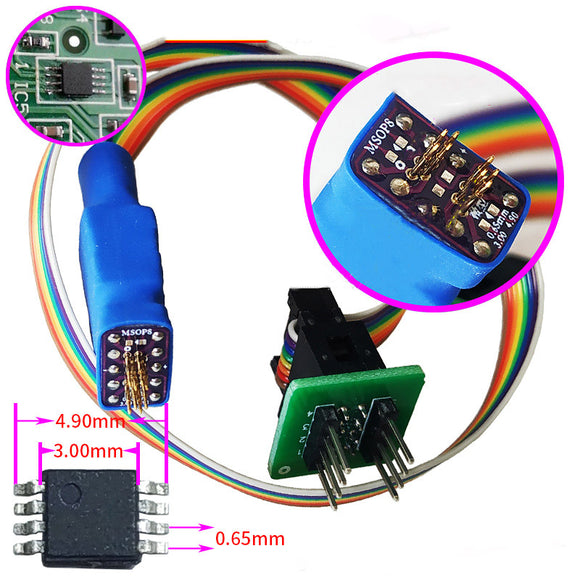

NANO MINI MSOP8 Chip Pogo PIN Adapter
Pitch: 0.65mm
Width: 3mm*3mm

Applications:
The instrument clusters manufacturers started to use MSOP-8 size EEPROM to store the data on. Using this tool is simplifying the way of dealing with this tiny EEPROMs. Just position, press and hold the spear point over the EEPROM pins and read any 93xx, 25xx, 95xx series SMD in-circuit!
Helpful to program an EEPROM on many airbag computers or SRS modules such as Honda, Acura, Hyundai, KIA. The application is not limited to these manufacturers. Just clean the EEPROM from resign or other coating using acetone, and the EEPROM is ready for programming. No mess left around EEPROM, the connection is invisible! The programmer featuring pins connection check is recommended for use with this adapter. Pogo pins are tiny, handle and use with care!!!





Require SOP8 Probe Pogo, click Here


Require TSSOP8 Socket adapter, click Here



Notice: Require other Probe Adapter Clips, click Here
