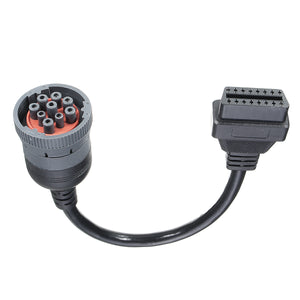

J1939 9PIN to 16PIN female connector adapter for Heavy Duty Truck Diagnostic Scanner Interface

  • $15.00
    Unit price per

Only 18 left!
Item No. LH99D21A Weight: 0.2 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

J1939 9PIN to 16PIN female connector adapter for Heavy Duty Truck Diagnostic Scanner Interface


Feature:
1. J1939-9Pin to OBD OBD2 OBDII.
2. It has integrated the basic diagnostic functions of J1939 heavy duty truck standard communication protocols.
3. J1939 is the vehicle bus recommended practice used for communication and diagnostics among vehicle components.
4. Deutsch 9 pin female connector can now be found in a range of diesel-powered applications: vehicles (on- and off-road),
marine propulsion, power generation and industrial pum ping.

Specification:
J1939-9Pin to OBD OBD2 OBDII
Material: Plastic
Size: 295x40x30mm
Connecting: OBD2 16pin female to J1939-9Pin
AWG: 26awg
Pins Definition:
Pin A: Ground
Pin B: Power, 12V or 24V which depends on your trucks/vehicles output.
Pin C: CAN1/J1939+
Pin D: CAN1/J1939-
Pin E: CAN1/J1939 Shield
Pin F: J1708/J1587 High
Pin G: J1708/J1587 Low
Pin H: Nullz
Pin I: Null which is for Port J on trucks/vehicles’ socket.

Application:
J1939 CAN BUS diagnostic unit (for trucks);
J1939 body builder CAN bus monitor (for trucks);
J1939 interface industrial engine display unit;
ISOBUS-control devices;
CAN bus Universal Controller;
CAN gateway and bus simulator;

Package Included:

1 X Female 16pin to J1939 9pin Tuck Cable
