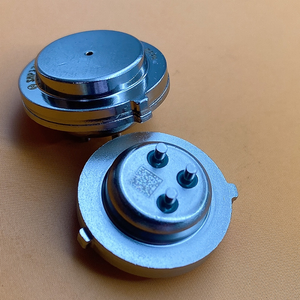

Original SMP132-532 Clutch Position Pressure Sensor for VAG 0DE 0DW 0DL 0GC DQ380 DQ381 DSG TCU

Original SMP132-532 Clutch Position Pressure Sensor for VAG 0DE 0DW 0DL 0GC DQ380 DQ381 DSG TCU TCM

Original Bosch Brand

After replacing the sensor, will need to do the basic settings.

Preparation:
1. Make sure the transmission is filled with 6 liters of oil.
2. Start the car, handbrake on.
3. Turn off the powers of the car lights and doors.

If there is an interruption for safety reasons, please turn off the engine, exit the diagnostic computer, and redo after 5 munites.

How to do the basic settings?
--- Taking LAUNCH X431 as an example:

Step 1: Enter the system according to the car model, and click on the transmission system.
Step 2: Click 02 to read the fault code
Step 3: Click 03 to clear the fault code
Step 4: Click 04 System Basic Adjustment
Step 5: select Transmission Basic Settings - OK - Adjust
Step 6: finished

Package List:

1x SMP132-532  Clutch Position Pressure Sensor
