[2 Years Free Update] Autel MaxiIM IM608Pro+ G-BOX2+ APB112 Emulator+ 8A Cable IM608 Pro, free IMKPA Kit

  • $3,799.00
    Unit price per
  • Save $100

Only 50 left!
Item No. LH62P152A Weight: 11.5 kg
Estimated: Standard 7-15 working days.
                      Expedited Shipping 3-6 working days.

[2 Years Free Update] Autel MaxiIM IM608Pro+ G-BOX2+ APB112 Emulator+ 8A Cable IM608 Pro, free IMKPA Kit







Specification

Manufacturer AUTEL
Language Spanish / English / Portuguese / Germany / Japanese / French
Update REAL 2 years free online update
Warranty 1 year
Tablet
10.1-inch Android touchscreen
Notice Global version, Including Brazil vehicles
Package  IM608Pro + G-BOX2 + APB112 Emulator +TOYOTA 8A Cable + IMKPA Kit









 VW MQB Component Security and Pin Code Calculations:

When working with a VW MQB Based Immo Vehicle and you receive the "server computation error" on your Autel programmer's screen, please follow this link to fill out the VW Request Form: https://94ebldhk61w.typeform.com/to/KkVi1gHz

Once the form is filled out, a tech from the Autel team will contact you to provide you with the Component Security and Pincode for the vehicle that you are working with. Generally, it takes them about 10 minutes to respond during their business hours, which are Monday thru Friday from 9:00AM to 9:00PM Eastern Time, after the form is submitted. You need to be with the vehicle when they contact you because these codes are "rolling," and they change with each key cycle. Do not disconnect the Autel programmer from the vehicle or cycle the vehicle's ignition switch after submitting your request to Autel. Also please make sure to apply additional voltage to the vehicle, if the battery goes dead after you send your request to Autel, the Immo Code will have rolled and the data that Autel gives to you will not be valid. If you have any questions about this process please call Autel USA Tech Support at 1-855-288-3587. As of now, this process only works for Volkswagen MQB Vehicles and does not work for Audi MBQ Vehicles.



The MaxiIM IM608 Pro features an automated and guided Smart Mode to help technicians perform key learning effortlessly. An Expert Mode provides experienced technicians with quick access to desired functions.

In comparison with its predecessor IM608, the new device feature the following new additions:

  • BMW EWS3 key learning (with APB114 adapter)
  • Mercedes-Benz W209 EIZ read/write/erase (with APB118 adapter)
  • OEM Mercedes-Benz NEC key learning (with APB115 adapter)

    Read/write Data
  • EEPROM - added 60 chip types, now supports 445 types (with APB119, 121, 122, 123 and 126 adapters);
  • MCU - added 32 chip types, now supports 2067 types (with APB120, 127 and 128 adapters);
  • Odometer – will add 162 chip types, will be able to support 171 types in July;
  • Engine ECU – added 1 chip type, now supports 41 chip types;
  • Immobilizer ECU – added 3 chip types, now supports 181 chip types.
  • Key unlock – supports 11 key types (with APB113 adapters).


In a glance, the MaxiIM IM608 Pro supports all the functions of the previous MaxiIM IM608 with a more powerful and stable performance of key functions, including read/write keys, read/write chips, and read/write Mercedes infrared key with a more stable EEPROM platform.



IMMO Functions

  • Auto Detect Make/Model/Year/System
  • Read PIN (All Key Lost)
  • Key Learning
  • IMMO ECU Reset/Adaption
  • IMMO ECU Refresh/Coding
  • Remote Learning
  • AUDI Q5/A4/A5 2015-2017 Key Learning
  • VW MQB Key Learning
  • BMW FEM/BDC Key Learning and Adaption
  • BMW CAS4 Key Learning and Adaption
  • Mercedes Key Learning
  • 2015-2018 Land Rover & Jaguar write key via dump
  • Volvo Smart Key Learning/knob-style smart key

 Advanced Programming Functions

  • EEPROM Read/Write
  • MCU Read/Write
  • Key Programming
  • Mercedes Key Read/Write
  • Remote Frequency Detect

    OE-Level Diagnostics

    • Compatible with more than 80 vehicle makes
    • All system diagnostics
    • Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

     Advanced Service Functions

    • Oil Service Reset
    • Parking Brake Pad Relearn After Replacement
    • Steering Angle Sensor Relearn
    • Battery Registration and Reset
    • Diesel Particulate Filter Regeneration
    • Tire Pressure Monitoring System
    • Active Test
    • ECU Coding
    • VW/Audi Component Protection
    • Complete Service Functions



    XP400Pro adds support for following chips:

    • EEPROM-->>AMD-->>AM29FXXX series chip
    • EEPROM-->> FUJITSU-->> MB29FXXX series chip
    • EEPROM-->> ST-->> M29FXXX series chip
    • Engine control module-->> ST-->> M29FXXX series chip
    • IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
    • IMMO-->> BMW-->>EWS3 module read/write function
    • REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

    XP400 Pro adds support for following adaptor board:

    • APB113 PCF79XXadaptor board
    • APB114 EWS3 adaptor board
    • APB115 NEC Adapter board
    • APB118 NEC ELV adaptor board
    • APB119 TB28FXXXadaptor board
    • APB120 TMS370adaptor board
    • APB121 AM29FXXX Adapter board
    • APB122 AM29FXXX adaptor board1
    • APB123 AM29FXXX adaptor board2
    • APB126 M35080/D80 adaptor board
    • APB127 MC68HC0(7)05BXX adaptor board
    • APB128 MC68HC05X32 adaptor board



    400pro supports 12 types of unlocking smart key:

    BMW E Chasis remote control
    OE 315 remote refresh
    OE 868 remote refresh
    Aftermarket remote control refresh
    BMW F Chasis remote control
    315 remote refresh
    433 remote refresh
    868 remote refresh
    Audi--semi smart key
    PCB2_8T0959754_433_REMOTE
    PCB2_8T0959754D_868_REMOTE
    Audi--smart key
    PCB3_4H0959754DA_433_SMARTKEY
    PCB3_4H0959754DB_315_SMARTKEY
    PCB3_4H0959754DD_868_SMART

    Specifications:

    • 15000 mAh Built-in Rechargeable Li-ion Battery
    • Wi-Fi
    • Multilingual Support
    • Limited One Year Warranty
    • 1-inch Touchscreen
    • 64GB Memory
    • Hexa-core Processor
    • 0 Megapixel Camera
    • 1920x1200 Resolution

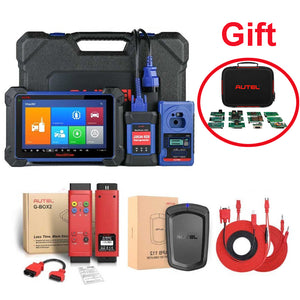

      MaxiIM IM608 Pro includes:

      • MaxiIM IM608 Tablet
      • XP400 Pro Key Programmer
      • MaxiFlash JVCI ECU Reprogrammer
      • Carry Case
      • Cables, cords and adapters:
         - Main Cable
         - USB Cable (2m)
         - Mini USB Cable
         - AC/DC Adapter (12V)
         - Light Fuse - 6*30mm (2pcs)
         - Cigarette Lighter
         - AAC001
         - APC101 (USB Cable)
         - APB129 (EEPROM Adapter)
         - APB125 (Mercedes Infrared Collector)
         - APB103 (MCU_PLCC52)
         - APB104 (MCU_FQFP64)
         - APB105 (MCU_FQFP80)
         - APB106 (MCU_FQFP112)
         - APB107 (MCU_FQFP144)
         - APB108 (MCU_FQFP176)
         - APB109
         - APB110 (MCU_FQFP176)
         - APB111 (MCU_FQFP176)
         - APA002 (EEPROM Socket)
         - APA101 (Signal Cable)
         - APA103 (EEPROM Clamp)
         - APA107 (ECU Clamp)
         - APA108 (MCU Clamp)
         - APA109 (MC9S12 Clamp)
         - Connect Cable


      Autel G-BOX2 Package Included:
      1pc x Autel G-BOX2
      1pc x DB15 Cable
      1pc x K-Line Cable
      1pc x Fuse Cable
      2pcs x Fuse (5A)
      2pcs x Clamp Cable
      1pc x OBDII Extension Cable
      1pc x Quick Reference Guide



      AUTEL APB112 Package List:

      1pc x APB112 Smart Key Simulator
      1pc x USB cable
      1pc x Quick Reference Guide



      TOYOTA 8A BLADE AKL Kit Package List:

      1kit x Autel fit for Toyota 8A Adapter
